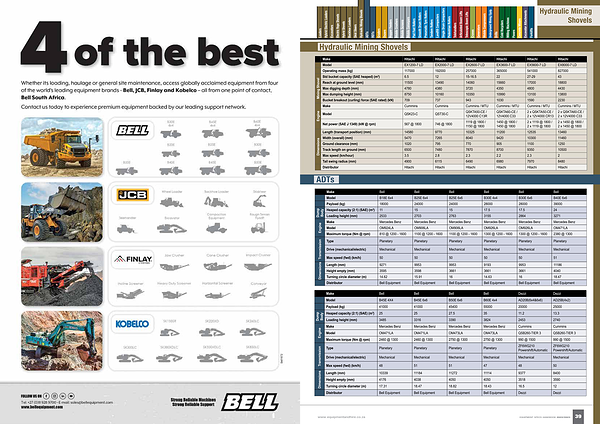

Hydraulic Mining Shovels

Mining Shovel Engine Dimensions

Make Hitachi Hitachi Hitachi Hitachi Hitachi Hitachi Model EX1200-7 LD EX2000-7 LD EX2600-7 LD EX3600-7 LD EX5600-7 LD EX8000-7 LD Operating mass ( kg ) 117000 192000 257000 365000 541000 827000 Std bucket capacity ( SAE heaped ) ( m ³ ) 6.5 12 15-16.5 22 27-29 43 Reach at ground level ( mm ) 11500 13490 14060 15660 17000 18800 Max digging depth ( mm ) 4780 4380 3720 4350 4800 4430 Max dumping height ( mm ) 8750 10160 10350 10990 13100 13800 Bucket breakout ( curling ) force ( SAE rated ) ( kN ) 709 737 943 1030 1590 2230 Make Cummins Cummins Cummins / MTU Cummins / MTU Cummins / MTU Cummins / MTU

Model QSK23-C QST30-C

Net power ( SAE J 1349 ) ( kW @ rpm ) 567 @ 1800 746 @ 1800

QSKTA50-CE / 12V4000 C13R

1119 @ 1800 / 1150 @ 1800

QSKTA60-CE / 12V4000 C33

1450 @ 1800 / 1450 @ 1800

2 x QSKTA50-CE / 2 x 12V4000 CR13

2 x 1119 @ 1800 / 2 x 1119 @ 1800

Length ( transport position ) ( mm ) 14580 9770 10325 11200 12535 13460 Width ( overall ) ( mm ) 5470 7265 8040 9420 10300 11460 Ground clearance ( mm ) 1020 795 770 905 1100 1250 Track length on ground ( mm ) 6500 7480 7870 8700 9350 10500 Max speed ( km / hour ) 3.5 2.8 2.3 2.2 2.3 2 Tail swing radius ( mm ) 4900 6115 6490 6980 7970 8480 Distributor Hitachi Hitachi Hitachi Hitachi Hitachi Hitachi

Dump Body

Engine

Make Bell Bell Bell Bell Bell Bell Model B18E 6x4 B25E 6x4 B25E 6x6 B30E 4x4 B30E 6x6 B40E 6x6 Payload ( kg ) 18000 24000 24000 28000 28000 39000 Heaped capacity ( 2:1 ) ( SAE ) ( m ³ ) 11 15 15 17.5 17.5 24 Loading height ( mm ) 2533 2703 2763 3155 2864 3271

2 x QSKTA60-CE / 2 x 12V4000 C33

2 x 1450 @ 1800 / 2 x 1450 @ 1800

Make Mercedes Benz Mercedes Benz Mercedes Benz Mercedes Benz Mercedes Benz Mercedes Benz Model OM924LA OM906LA OM906LA OM926LA OM926LA OM471LA Maximum torque ( Nm @ rpm ) 810 @ 1200 - 1600 1100 @ 1200 - 1600 1100 @ 1200 - 1600 1300 @ 1200 - 1600 1300 @ 1200 - 1600 2380 @ 1300

Transmission Dimensions

Dump Body

Engine

Transmission

Make Bell Bell Bell Bell Dezzi Dezzi Model B45E 4X4 B45E 6x6 B50E 6x6 B60E 4x4 AD20B ( 6x4 & 6x6 ) AD25B ( 4x2 ) Payload ( kg ) 41000 41000 45400 55000 20000 25000 Heaped capacity ( 2:1 ) ( SAE ) ( m ³ ) 25 25 27.5 35 11.2 13.3 Loading height ( mm ) 3485 3316 3390 3824 2453 2740 Make Mercedes Benz Mercedes Benz Mercedes Benz Mercedes Benz Cummins Cummins Model OM471LA OM471LA OM473LA OM473LA QSB260-TIER 3 QSB260-TIER 3 Maximum torque ( Nm @ rpm ) 2460 @ 1300 2460 @ 1300 2750 @ 1300 2750 @ 1300 990 @ 1500 990 @ 1500

Type Planetary Planetary Planetary Planetary

ZF6WG210 Powershift / Automatic

ZF6WG210 Powershift / Automatic

Drive ( mechanical / electric ) Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Max speed ( fwd ) ( km / h ) 48 51 51 47 48 50

Dimensions
