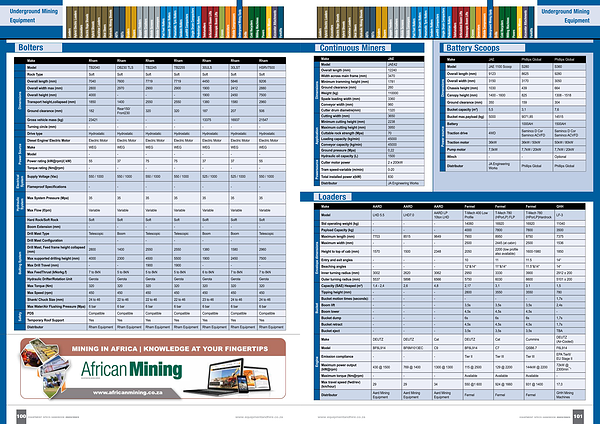

Underground Mining Equipment
Powersource Application Dimensions
Continuous Miners
Make |
JAE |
Model |
JAE42 |
Overall length ( mm ) |
12240 |
Width across main frame ( mm ) |
3470 |
Minimum tramming height ( mm ) |
1781 |
Ground clearance ( mm ) |
260 |
Weight ( kg ) |
110000 |
Spade loading width ( mm ) |
3360 |
Conveyor width ( mm ) |
960 |
Cutter drum diametre ( mm ) |
1320 |
Cutting width ( mm ) |
3650 |
Minimum cutting height ( mm ) |
2238 |
Maximum cutting height ( mm ) |
3950 |
Cuttable rock strength ( Mpa ) |
70 |
Loading capacity ( kg / min ) |
45000 |
Conveyor capacity ( kg / min ) |
45000 |
Ground pressure ( Mpa ) |
0,22 |
Hydraulic oil capacity ( L ) |
1500 |
Cutter motor power |
2 x 200kW |
Tram speed-variable ( m / min ) |
0-20 |
Total installed power z ( kW ) |
830 |
Distributor JA Engineering Works
Dimensions Power source
Battery Scoops
Make JAE Phillips Global Phillips Global Model JAE 1100 Scoop S280 S360 Overall length ( mm ) 9123 8625 9280 Overall width ( mm ) 3150 3170 3050 Chassis height ( mm ) 1030 439 664 Canopy height ( mm ) 1400 - 1600 825 1308 - 1518 Ground clearance ( mm ) 350 159 304 Bucket capacity ( m ³) 5,5 3,1 7,6 Bucket max . payload ( kg ) 5000 9071,85 14515 Battery - 1000AH 1500AH
Traction drive 4WD
Saminco D Cor Saminco ACVFD
Saminco D Cor Saminco ACVFD
Traction motor 36kW 36kW / 50kW 50kW / 80kW Pump motor 7,5kW 7,7kW / 20kW 7,7kW / 20kW Winch - - Optional
Distributor
JA Engineering Works
Phillips Global Phillips Global
Envelope dimensions Bucket Engine
Loaders
Make AARD AARD AARD Fermel Fermel Fermel GHH Model LHD 5.5 LHD7.0
AARD LP 10ton LHD
T-Mech 400 Low Profile
T-Mech 780 ( HPorLP ) FLP
T-Mech 780 ( HPorLP ) Hardrock
Std operating weight ( kg ) - - - 14060 16920 16920 11040 Payload Capacity ( kg ) - - - 4000 7800 7800 3500 Maximum length ( mm ) 7703 8515 9649 7900 8950 8750 7375 Maximum width ( mm ) - - - 2500 2445 ( at cabin ) 2500 1536
Height to top of cab ( mm ) 1570 1500 2348 2050
2200 ( low profile also available )
LF-3
1600-1980 1850
Entry and exit angles - - - 10 11 11.5 14 ° Beaching angles - - - 12 °& 14 ° 11 °& 14 ° 11.5 °& 14 ° 14 ° Inner turning radius ( mm ) 3002 2620 3062 2950 3330 3900 2912 ± 200 Outer turning radius ( mm ) 5537 5898 6566 5750 6030 6600 5101 ± 200 Capacity ( SAE ) Heaped ( m ³) 1,4 - 2,4 2,6 4,8 2,17 3,1 3.1 1,5 Tipping height ( mm ) - - - 2800 3550 3550 780 Bucket motion times ( seconds ): - - - - - - 1,7s Boom lift - - - 3,5s 3,5s 3,5s 2,4s Boom lower - - - 4,5s 4,5s 4,5s - Bucket dump - - - 6s 6s 6s 1,7s Bucket retract - - - 4,5s 4,5s 4,5s 1,7s Bucket eject - - - 3,5s 3,5s 3,5s TBA
Make DEUTZ DEUTZ Cat DEUTZ Cat Cummins Model BF6L914 BF6M1013EC C9 BF6L914 C7 QSB6.7 F6L914 Emission compliance - - - Tier II Tier III Tier III
Maximum power output ( kW @ rpm )
430 @ 1500 769 @ 1400 1300 @ 1300 115 @ 2500 129 @ 2200 144kW @ 2200
Maximum torque ( Nm @ rpm ) - - - Available Available Available -
Max travel speed ( fwd / rev ) ( km / hour )
Distributor
29 29 34 550 @ 1 600 924 @ 1660 931 @ 1400 17,0
Aard Mining Equipment
Aard Mining Equipment
Aard Mining Equipment
Fermel Fermel Fermel
DEUTZ ( Air-Cooled )
EPA TierII / EU Stage II
72kW @ 2300min¯ ¹
GHH Mining Machines www . equipmentandhire . co . za
EQUIPMENT SPECS HANDBOOK 2022 / 2023
