EOS R3: The Reign Continues | Page 65
SPECIFICATIONS

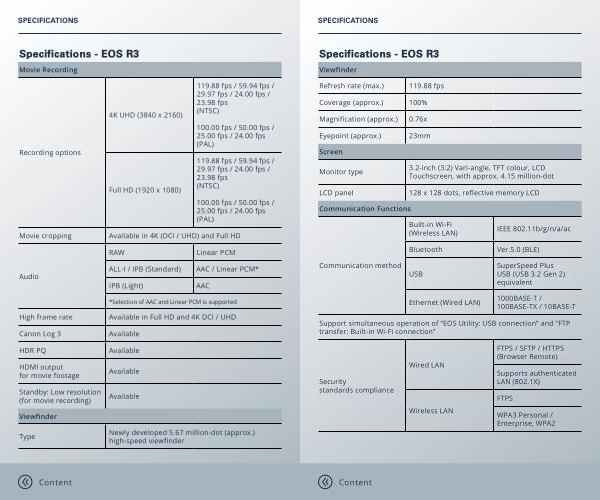

Specifications - EOS R3
Viewfinder
Refresh rate ( max .)
119.88 fps
Coverage ( approx .)
100 %
Magnification ( approx .)
0.76x
Eyepoint ( approx .)
23mm
Screen
Monitor type
3.2-inch ( 3:2 ) Vari-angle , TFT colour , LCD Touchscreen , with approx . 4.15 million-dot
LCD panel 128 x 128 dots , reflective memory LCD Communication Functions
Built-in Wi-Fi ( Wireless LAN )
IEEE 802.11b / g / n / a / ac
Bluetooth Ver . 5.0 ( BLE )
Communication method USB
Ethernet ( Wired LAN )
SuperSpeed Plus USB ( USB 3.2 Gen 2 ) equivalent
1000BASE-T / 100BASE-TX / 10BASE-T
Support simultaneous operation of “ EOS Utility : USB connection ” and “ FTP transfer : Built-in Wi-Fi connection ”
Security standards compliance
Wired LAN
Wireless LAN
FTPS / SFTP / HTTPS ( Browser Remote )
Supports authenticated LAN ( 802.1X )
FTPS
WPA3 Personal / Enterprise , WPA2
