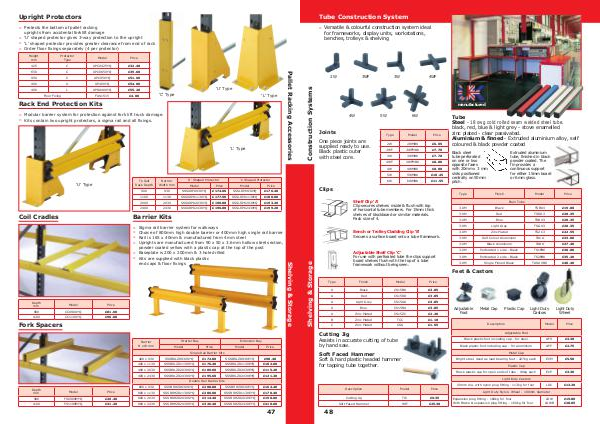

Tube Construction System
›› Versatile & colourful construction system ideal for frameworks, display units, workstations, benches, trolleys & shelving
2W 3WF 3W 4WF
Construction Systems Shelving & Storage
Joints
One piece joints are supplied ready to use. Black plastic outer with steel core.
Clips
4W 5W 6W
Shelf Clip‘ A’ Clip secures shelves inside & flush with top of horizontal tube members. For 15mm thick shelves of blockboard or similar materials. Pack size of 4.
Bench or Trolley Cladding Clip‘ B’ Secures a surface board onto a tube framework.
Cutting Jig Assists in accurate cutting of tube by hand saw.
Soft Faced Hammer Soft & hard plastic headed hammer for tapping tube together.
Type Model Price
2W 2WMBK £ 6.05 3WF 3WFMBK £ 7.70 3W 3WMBK £ 7.70 4WF 4WFMBK £ 8.80 4W 4WMBK £ 8.80 5W 5WMBK £ 10.45 6W 6WMBK £ 11.55
Adjustable Shelf Clip‘ C’ For use with perforated tube the clips support board shelves flush with the top of a tube framework without being seen.
Type Finish Model Price
A Black CS15BK £ 3.85 A Red CS15RD £ 3.85 A Light Grey CS15GU £ 3.85 A Blue CS15BU £ 3.85 A Zinc Plated CS15ZC £ 2.20 B Zinc Plated TCC £ 1.10 C Zinc Plated CSA £ 1.65
manufactured
Tube Steel- 18 swg cold rolled seam welded steel tube. black, red, blue & light grey- stove enamelled zinc plated- clear passivated. Aluminium & finned- Extruded aluminium alloy, self coloured & black powder coated
Black steel tube perforated on one or two opposite faces with 20mm x 3 mm slots positioned centrally on 50mm pitch.
Feet & Castors
Adjustable Foot
Extruded aluminium tube, finished in black powder coated. The fin provides a continuous support for either 15mm board or 6mm glass.
Type Finish Model Price
Plain Tube 3.0M Black TSBK3 £ 19.80 3.0M Red TSRD3 £ 20.35 3.0M Blue TSBU3 £ 20.35 3.0M Light Grey TSGU3 £ 20.35 3.0M Zinc Plated TSZC3 £ 22.55 3.0M Self Colour Aluminium TACA £ 33.00 3.0M Black Aluminium TABK £ 37.40 3.0M Perforated 1 side- Black TS1PBK £ 30.80 3.0M Perforated 2 side- Black TS2PBK £ 35.20 3.0M Single Finned Black TASUVBK £ 48.40
Metal Cap |
Plastic Cap |
Light Duty |
Light Duty |
|
|
Castors |
Wheel |
Description Model Price
Adjustable Feet Black plastic foot including cap- for steel AFS £ 3.30
Black plastic foot including cap- for aluminium AFP £ 2.75 Metal Cap Bright steel. Used as load bearing feet- 227kg each ECM £ 5.50 Plastic Cap Black plastic cap for open ends of tube- 90kg each ECP £ 3.30 Light Duty Castors
48
Description Model Price
Cutting Jig TJC £ 9.35 Soft Faced Hammer HSF £ 25.30
50mm dia. with nylon plug fitting- 113kg for four LDC £ 13.20 Light Duty Nylon. Wheel- 100mm diameter
Expansion plug fitting- 160kg for four With Brake & expansion plug fitting- 160kg for four
LDW LDWB
£ 19.80 £ 28.05
