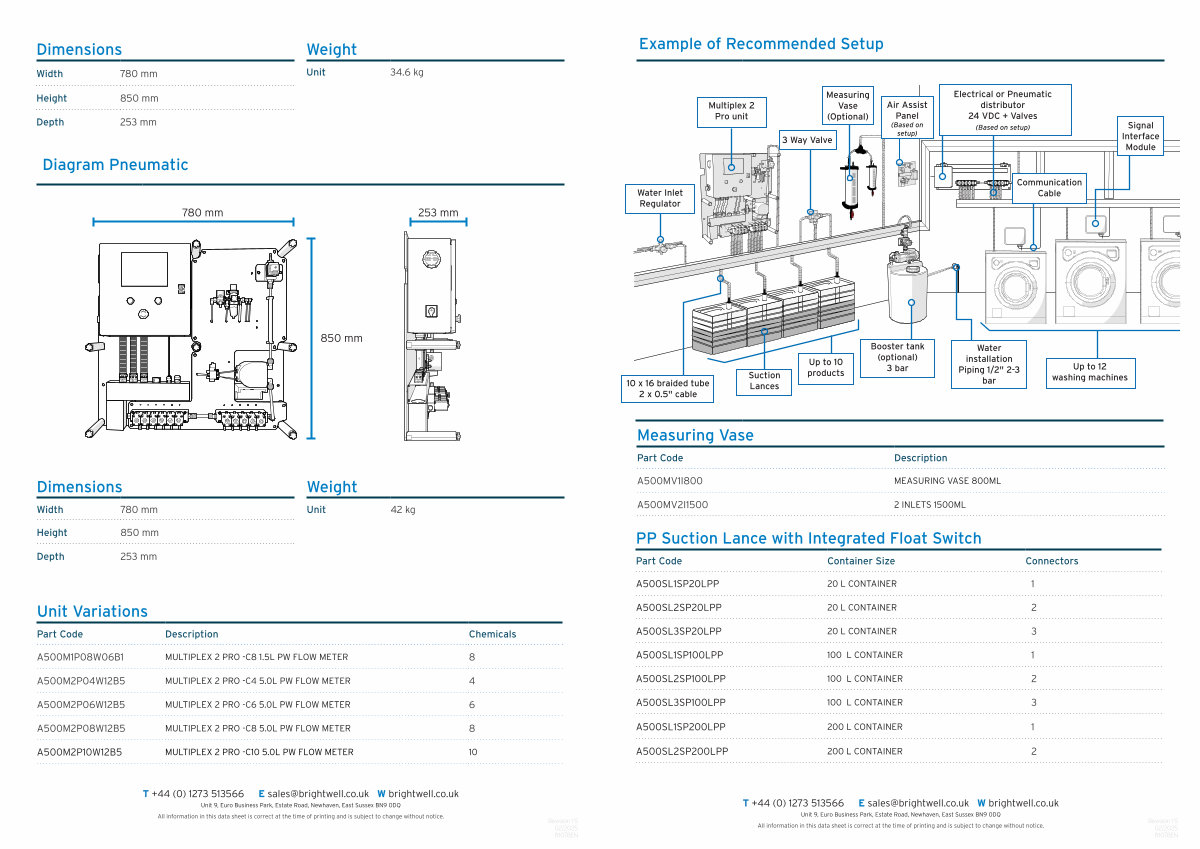

EN Multiplex 2 Pro Datasheet | Page 4

Dimensions Weight
Width
780 mm
Unit
34.6 kg
Height
850 mm
Depth
253 mm
Diagram Pneumatic
780 mm 253 mm
850 mm
Dimensions Weight
Width
780 mm
Unit
42 kg
Height
850 mm
Depth
253 mm
Unit Variations
Part Code
Description
Chemicals
A500M1P08W06B1
MULTIPLEX 2 PRO -C8 1.5L PW FLOW METER
8
A500M2P04W12B5
MULTIPLEX 2 PRO -C4 5.0L PW FLOW METER
4
A500M2P06W12B5
MULTIPLEX 2 PRO -C6 5.0L PW FLOW METER
6
A500M2P08W12B5
MULTIPLEX 2 PRO -C8 5.0L PW FLOW METER
8
A500M2P10W12B5
MULTIPLEX 2 PRO -C10 5.0L PW FLOW METER
10
T + 44 ( 0 ) 1273 513566 E sales @ brightwell . co . uk W brightwell . co . uk Unit 9 , Euro Business Park , Estate Road , Newhaven , East Sussex BN9 0DQ All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.5 02 / 2025 B1078EN
