Part Code |
Description |
Pump Type |
Chemicals |
A500L2P06W06B1 |
MULTIPLEX 1 PRO-C6 1.5L PW FLOW METER |
Electric |
6 |
A500L2P08W06B1 |
MULTIPLEX 1 PRO-C8 1.5L PW FLOW METER |
Electric |
8 |
A500L4P06W06B5 |
MULTIPLEX 1 PRO-C6 2.5L PW W / REGULATOR |
Pneumatic |
6 |
A500L4P08W06B5 |
MULTIPLEX 1 PRO-C8 2.5L PW W / REGULATOR |
Pneumatic |
8 |
|

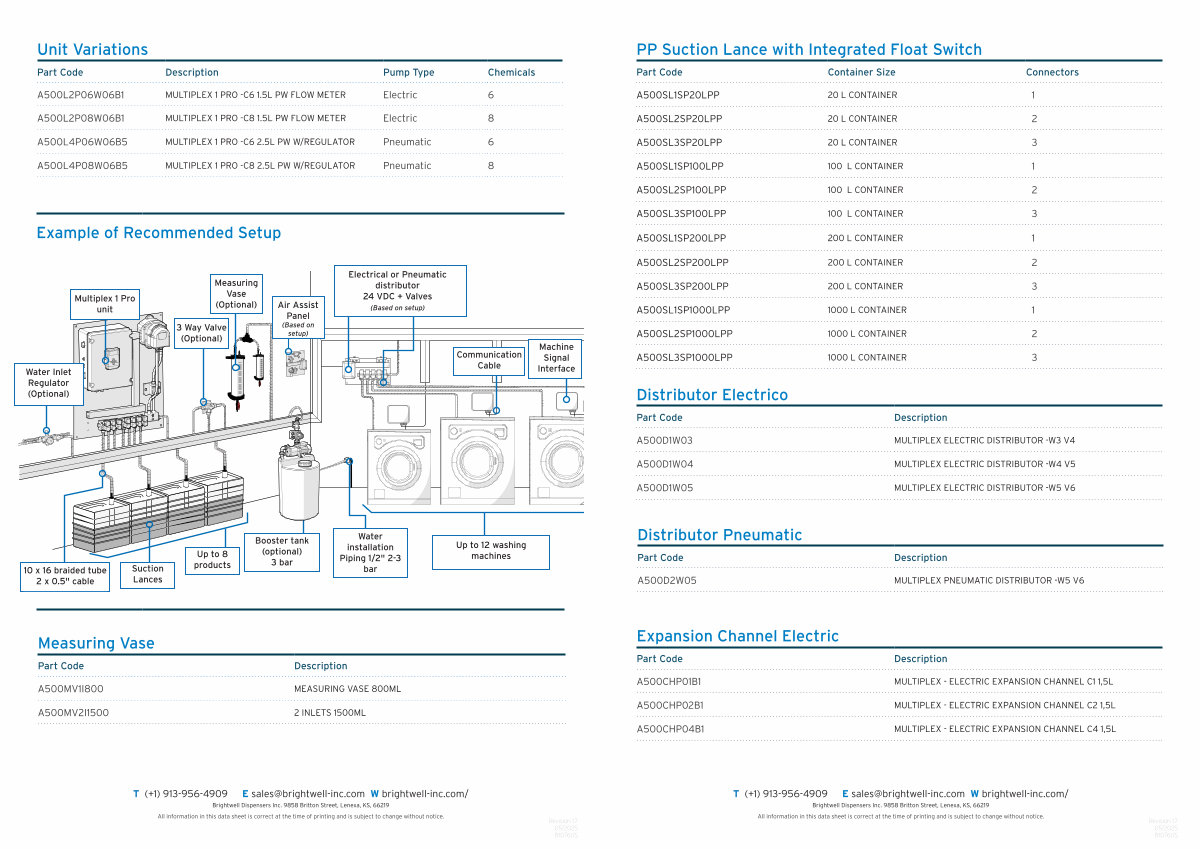

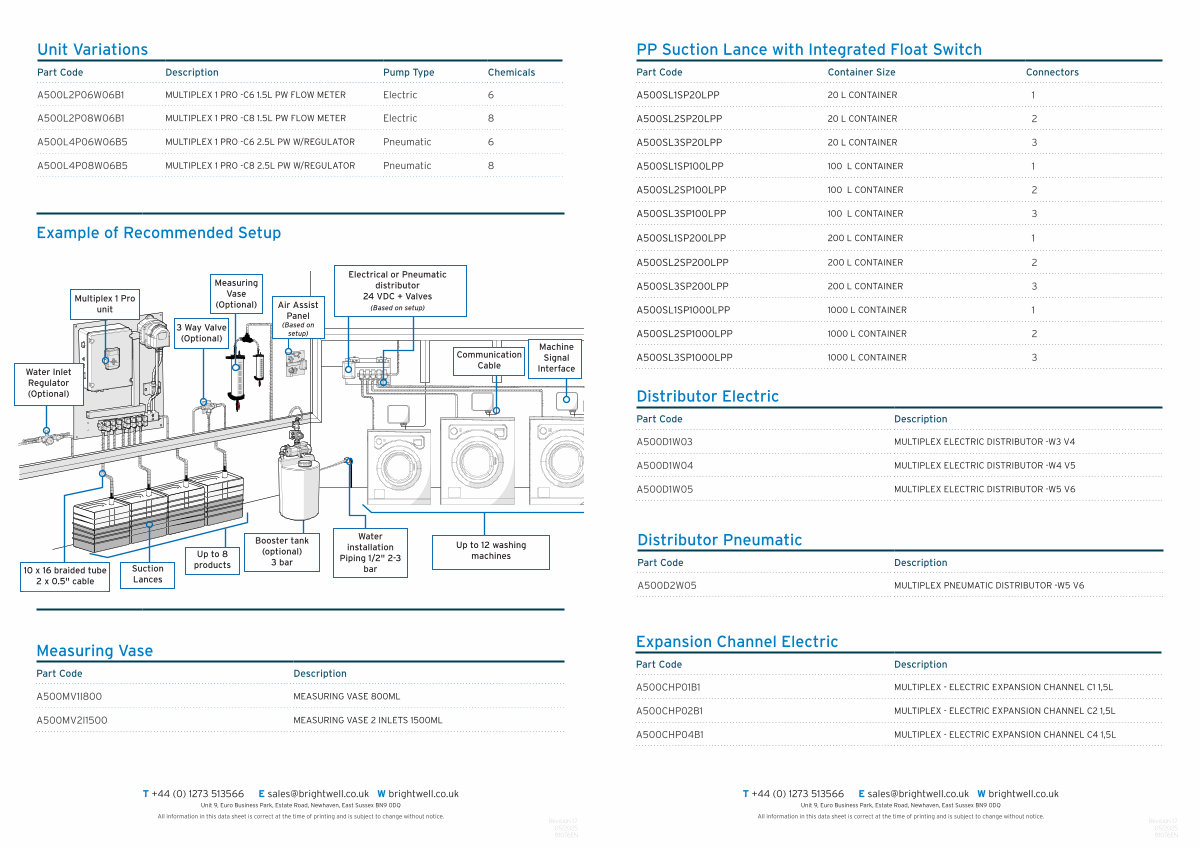

Water Inlet Regulator( Optional)
Multiplex 1 Pro unit
|
3 Way Valve( Optional)
Measuring Vase( Optional)
|
Air Assist Panel
( Based on setup)
|
Electrical or Pneumatic distributor 24 VDC + Valves
( Based on setup)
|
Communication Cable |
Machine Signal Interface |
10 x 16 braided tube 2 x 0.5 " cable |
Suction Lances |
Up to 8 products |
Booster tank( optional) 3 bar |
Water installation Piping 1 / 2 " 2-3 bar |
Up to 12 washing machines |
