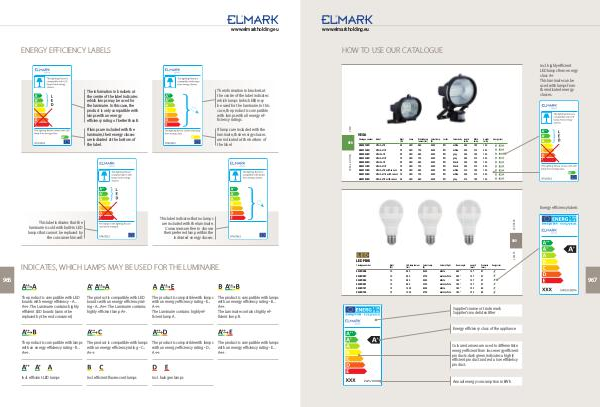

HOW TO USE OUR CATALOGUE
incl. highly efficient
LED lamps from energy
class A+
This luminaire can be
used with lamps from
the indicated energy
classes.
LAMPS AND COMPONENTS
LAMPS
www.elmarkholding.eu
VEGA
Catalogue number Model Watt
(W) Lamp Whole fixture
lumens (lm) Colour temp.
(K) Socket Colour body Length
(mm) Width
(mm) Height
(mm)
989007LED VEGA J-78 5.5 LED 440 4000 R7s white 200 145 120
989010LED VEGA J-118 7.5 LED 700 4000 R7s white 250 210 230
989009LED VEGAJ-78 5.5 LED 440 4000 R7s grey 200 145 120
989012LED VEGA J-118 7.5 LED 700 4000 R7s grey 260 210 230
989008LED VEGAJ-78 5.5 LED 440 4000 R7s black 200 145 120
989011LED VEGA J-118 7.5 LED 700 4000 R7s black 250 210 230
989017LED VEGA J-78 with sensor 5.5 LED 440 4000 R7s white 210 145 120
989019LED VEGA J-118 with sensor 7.5 LED 700 4000 R7s white 260 210 230
989018LED VEGA J-78 with sensor 5.5 LED 440 4000 R7s grey 210 145 120
989020LED VEGA J-118 with sensor 7.5 LED 700 4000 R7s grey 260 210 230
98VEGA70RGB VEGA70RGB 70 - - RGB - grey 380 285 80
100 - - RGB - grey 385 285 120
98VEGA100RGB VEGA100RGB
Energy class
Body: aluminium casting | LED driver: mounted in the body | Light source: Epistar | Input voltage: 85V-265V | Ambient Temperature: - 40°C÷ +55°C | Diffuser: Tempered glass
50/60
Hz
120
2
Ra>70 2
YEAR
WARRANTY
Energy efficiency labels
303
410
LED PEAR
Catalogue number Watt
(W) LED lamp lumens
(lm) Colour temp.
(K) Colour of light Beam angle Length
(mm) Diameter
(mm)
99LED588 12 960 4000 white 240° 127 67
99LED587 12 960 2700 warm white 240° 127 67
99LED582 12 960 4000 white 180° 127 67
99LED581 12 960 2700 warm white 180° 127 67
99LED721 15 1200 4000 white 180° 153 80
1200 2700 warm white 180° 153 80
15
99LED722
50/60
Hz
SMD
2835
Ra>80
>20000
3
2
Energy class
YEAR
WARRANTY
Supplier’s name or trade mark
Supplier’s model identifier
Energy efficiency class of the appliance
Coloured arrows are used to differentiate
energy efficient from less energy efficient
products: dark green indicates a highly
efficient product and red a low efficiency
product.
Annual energy consumption in kWh
967
