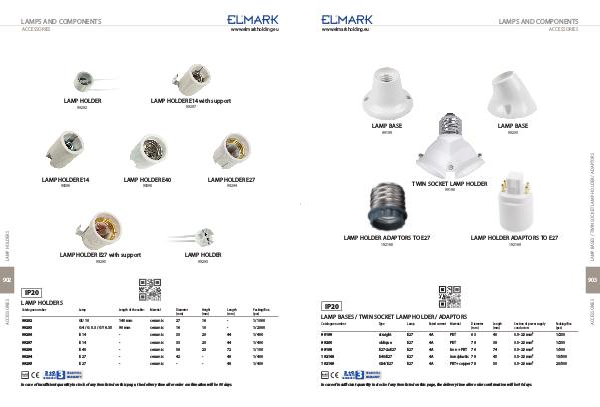

LAMPS AND COMPONENTS
ACCESSORIES
LAMP BASE LAMP BASE
99199 99200
TWIN SOCKET LAMP HOLDER
99198
LAMP HOLDER ADAPTORS TO E27 LAMP HOLDER ADAPTORS TO E27
192168 192169
www.elmarkholding.eu
IP20
LAMP BASES / TWIN SOCKET LAMP HOLDER / ADAPTORS
Catalogue number Type Lamp Rated current Material Diameter
(mm) Length
(mm) Section of power supply
conductors Packing/Box
(pcs)
99199 straight E27 4A PET 63 40 0.5-2.5mm² 1/250
99200 oblique E27 4A PET 78 38 0.5-2.5mm² 1/250
99198 E27-2xE27 E27 4A Iron + PBT 76 74 0.5-2.5mm² 1/300
192168 E40/E27 E27 4A iron/plastic 78 45 0.5-2.5mm² 15/500
192169 G24/E27 E27 4A PBT+ copper 78 50 0.5-2.5mm² 25/300
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
903
