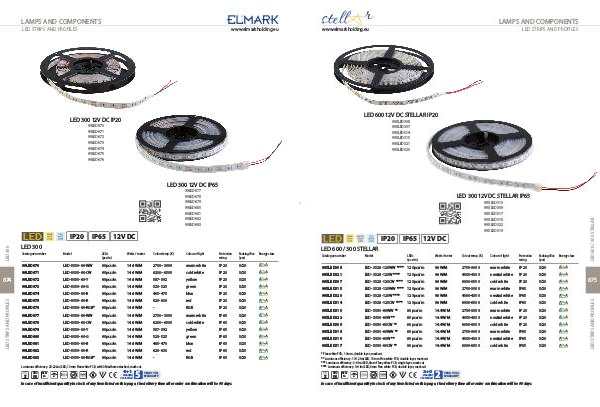

LAMPS AND COMPONENTS
www.elmarkholding.eu
LED STRIPS AND PROFILES
LED 600 12V DC STELLAR IP20
99XLED308
99XLED307
99XLED314
99XLED315
99XLED321
99XLED320
IP20
IP65 12V DC
LED 600 / 300 STELLAR
Catalogue number Model
99XLED308 99XLED321
LEDs
(pcs/m)
Watts / meter Colour temp. (K) Colour of light Protection
rating Packing/Box
(pcs)
LED- 3528-120WW **** 120pcs/m 9.6W/M 2700-3000 warm white IP 20 5/20
LED- 3528-120W **** 120pcs/m 9.6W/M 4000-4300 neutral white IP 20 5/20
99XLED307 LED- 3528-120CW **** 120pcs/m 9.6W/M 6000-6500 cold white IP 20 5/20
99XLED315 LED- 3528-120WW **** 120pcs/m 9.6W/M 2700-3000 warm white IP65 5/20
99XLED320 LED- 3528-120W **** 120pcs/m 9.6W/M 4000-4300 neutral white IP65 5/20
99XLED314 LED- 3528-120CW **** 120pcs/m 9.6W/M 6000-6500 cold white IP65 5/20
99XLED310 LED- 5050-60WW ** 60pcs/m 14.4W/M 2700-3000 warm white IP 20 5/20
99XLED322 LED- 5050-60W ** 60pcs/m 14.4W/M 4000-4300 neutral white IP 20 5/20
99XLED309 LED- 5050-60CW ** 60pcs/m 14.4W/M 6000-6500 cold white IP 20 5/20
99XLED318 LED- 5050-60WW ** 60pcs/m 14.4W/M 2700-3000 warm white IP65 5/20
99XLED319 LED- 5050-60W ** 60pcs/m 14.4W/M 4000-4300 neutral white IP65 5/20
99XLED317 LED- 5050-60CW ** 60pcs/m 14.4W/M 6000-6500 cold white IP65 5/20
* Flex white FCB, 10mm, double layer, mark cut
** Luminous efficiency: 10-12 lm/LED, 10mm Flex white FCB, double layer, mark cut
*** Luminous efficiency: 3-4 lm/LED, 8mm Flex yellow PCB, single layer, mark cut
**** Luminous efficiency: 3-4 lm/LED, 8mm Flex white FCB, double layer, mark cut
DC
SMD
5050
REEL
5m
2+0
120
standard
+extended
2
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
875
99XLED310
99XLED309
99XLED317
99XLED318
99XLED322
99XLED319
LED 300 12V DC STELLAR IP65
