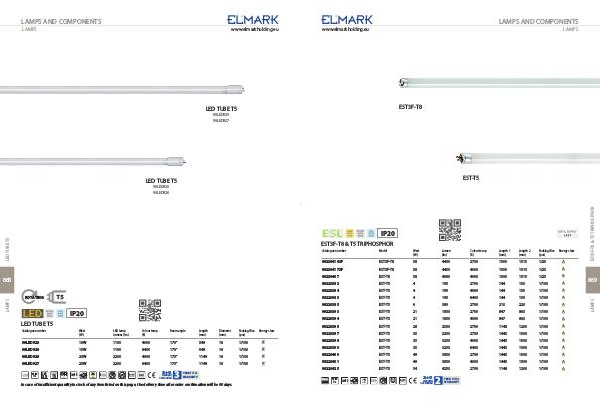

ELMARK Lighting 2019 Lighting_2019 | Page 469

LAMPS AND COMPONENTS
www.elmarkholding.eu
LAMPS
EST3F-T8
EST3F-T8 & T5 TRIPHOSPHOR
Catalogue number Model Watt
(W) Lumen
(lm) Colour temp.
(K) Length 1
(mm) Length 2
(mm) Packing/Box
(pcs)
992304163F EST3F-T8 58 4450 2700 1500 1515 1/25
992304173F EST3F-T8 58 4450 4000 1500 1515 1/25
99230407 EST-T8 58 4080 4000 1500 1515 1/25
99220383 EST-T5 4 195 2700 144 150 1/100
99220384 EST-T5 4 195 4000 144 150 1/100
99220063 EST-T5 4 195 6400 144 150 1/100
99220385 EST-T5 6 380 2700 210 220 1/100
99220393 EST-T5 21 1850 2700 847 863 1/100
99220394 EST-T5 21 1850 4000 847 863 1/100
99220395 EST-T5 28 2550 2700 1148 1200 1/100
99220397 EST-T5 35 3250 2700 1445 1500 1/100
99220398 EST-T5 35 3250 4000 1445 1500 1/100
99220399 EST-T5 35 3250 6400 1445 1500 1/100
99220400 EST-T5 49 3850 2700 1445 1500 1/100
99220401 EST-T5 49 3850 4000 1445 1500 1/100
99220425 EST-T5 54 4250 2700 1148 1200 1/100
50/60
Hz
Ra>82
2+0
INITIAL LIGHT
>10000
< 2 s
< 2 mg
standard
+extended
2
YEAR TOTAL
WARRANTY
Energy class
869
IP20
EST-T5
