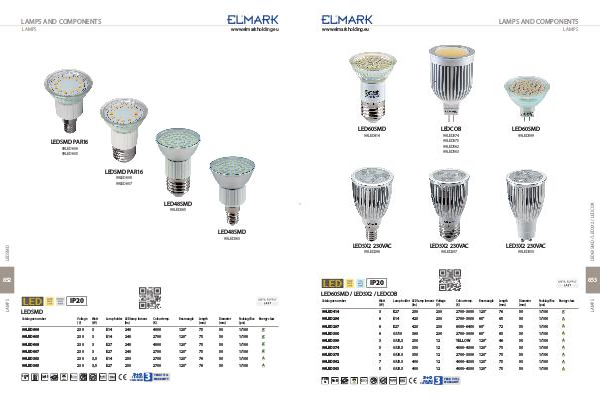

ELMARK Lighting 2019 Lighting_2019 | Page 453

LAMPS AND COMPONENTS
LAMPS
LEDCOB LED60SMD
99LED414 99LED374
99LED375
99LED562
99LED563 99LED399
LED60SMD
www.elmarkholding.eu
LED3X2 230VAC LED3X2 230VAC LED3X2 230VAC
99LED296 99LED297 99LED300
853
IP20
Catalogue number Watt
(W) Lamp holder LED lamp lumens Voltage
(lm)
(V) Colour temp.
(K) Beam angle Length
(mm) Diameter
(mm) Packing/Box
(pcs)
99LED414 3 E27 250 230 2700-3000 120° 76 50 1/100
99LED296 6 E14 420 230 2700-3000 60° 65 50 1/100
99LED297 6 E27 420 230 6000-6400 60° 72 50 1/100
99LED300 6 GU10 360 230 2700-3000 60° 85 50 1/100
99LED399 3 GU5,3 250 12 YELLOW 120° 46 50 1/100
99LED374 5 GU5.3 350 12 4000-4300 120° 75 50 1/100
99LED375 5 GU5.3 350 12 2700-3000 120° 75 50 1/100
99LED562 7 GU5.3 400 12 4000-4300 120° 75 50 1/100
99LED563 5 GU5.3 400 12 4000-4300 120° 75 50 1/100
50/60
Hz
Ra>80
>20000
3
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
Energy class
LED60SMD / LED3X2 / LEDCOB
