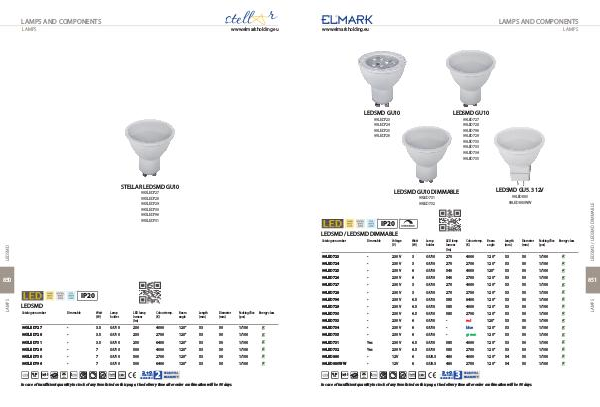

ELMARK Lighting 2019 Lighting_2019 | Page 451

LAMPS AND COMPONENTS
www.elmarkholding.eu
LAMPS
LEDSMD GU10 LEDSMD GU10
99LED723
99LED724
99LED725
99LED726 99LED727
99LED728
99LED796
99LED729
99LED730
99LED733
99LED734
99LED735
IP20
LEDSMD / LEDSMD DIMMABLE
Catalogue number Dimmable Voltage
(V) Watt
(W) Lamp
holder LED lamp
lumens
(lm) Colour temp.
(K) Beam
angle Length
(mm) Diameter
(mm) Packing/Box
(pcs)
99LED723 - 230 V 3 GU10 270 4000 120° 53 50 1/100
99LED724 - 230 V 3 GU10 270 2700 120° 53 50 1/100
99LED725 - 230 V 6 GU10 540 4000 120° 53 50 1/100
99LED726 - 230 V 6 GU10 540 2700 120° 53 50 1/100
99LED727 - 230 V 3 GU10 270 4000 120° 53 50 1/100
99LED728 - 230 V 3 GU10 270 2700 120° 53 50 1/100
99LED796 - 230 V 6.5 GU10 585 6400 120° 53 50 1/100
99LED729 - 230 V 6.5 GU10 585 4000 120° 53 50 1/100
99LED730 - 230 V 6.5 GU10 585 2700 120° 53 50 1/100
99LED733 - 230 V 6 GU10 - red 120° 53 50 1/100
99LED734 - 230 V 6 GU10 - blue 120° 53 50 1/100
99LED735 - 230 V 6 GU10 - green 120° 53 50 1/100
99LED731 Yes 230 V 6.5 GU10 585 4000 120° 53 50 1/100
99LED732 Yes 230 V 6.5 GU10 585 2700 120° 53 50 1/100
99LED880 - 12V 6 GU5.3 480 4000 120° 54 50 1/100
99LED880WW - 12V 6 GU5.3 480 2700 120° 54 50 1/100
50/60
Hz
Ra>80
>20000
3
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
851
99LED880
99LED880WW
99LED731
99LED732
LEDSMD GU5.3 12V
LEDSMD GU10 DIMMABLE
