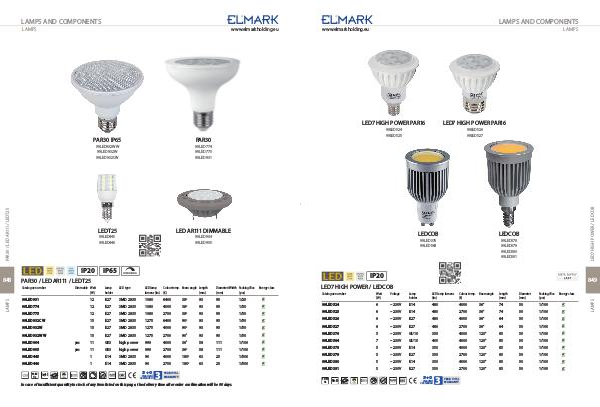

ELMARK Lighting 2019 Lighting_2019 | Page 449

LAMPS AND COMPONENTS
www.elmarkholding.eu
LAMPS
LED7 HIGH POWER PAR16
99LED524
99LED525 99LED526
99LED527
LEDCOB LEDCOB
99LED376
99LED564 99LED378
99LED379
99LED380
99LED381
LED7 HIGH POWER PAR16
IP20
849
LED7 HIGH POWER / LEDCOB
Watt
(W) Voltage Lamp
holder LED lamp lumens
(lm) Colour temp. Beam angle
(K) Length
(mm) Diameter
(mm) Packing/Box
(pcs)
99LED524 6 ~230V E14 480 4000 36° 74 50 1/100
99LED525 6 ~230V E14 480 2700 36° 74 50 1/100
99LED526 6 ~230V E27 480 4000 36° 64 50 1/100
99LED527 6 ~230V E27 480 2700 36° 64 50 1/100
99LED376 5 ~230V GU10 350 4000 120° 85 50 1/100
99LED564 7 ~230V GU10 400 4000 120° 85 50 1/100
99LED378 5 ~230V E14 350 4000 120° 85 50 1/100
99LED379 5 ~230V E27 350 2700 120° 85 50 1/100
99LED380 5 ~230V E14 350 4000 120° 85 50 1/100
99LED381 5 ~230V E27 350 2700 120° 85 50 1/100
50/60
Hz
Ra>80
>20000
3
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
Energy class
Catalogue number
