OUTDOOR
HIGH BAYS
www.elmarkholding.eu

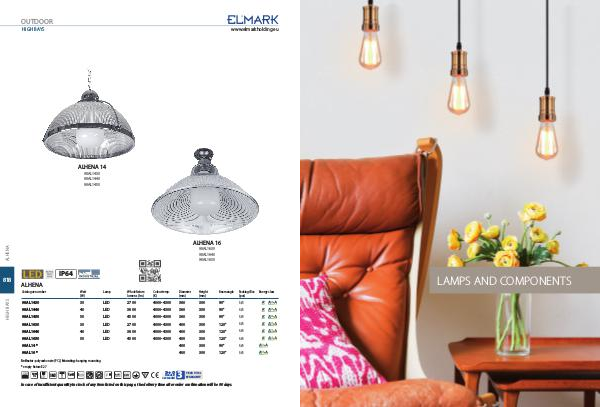

ALHENA 14
98AL1430
98AL1440
98AL1450
ALHENA 16
818
98AL1630
98AL1640
98AL1650
IP64
ALHENA
Catalogue number Watt
(W) Lamp Whole fixture
lumens (lm) Colour temp.
(K) Diameter
(mm) Height
(mm) Beam angle Packing/Box
(pcs)
98AL1430 30 LED 2700 4000-4300 360 300 90° 1/1
98AL1440 40 LED 3600 4000-4300 360 300 90° 1/1
98AL1450 50 LED 4500 4000-4300 360 300 90° 1/1
98AL1630 30 LED 2700 4000-4300 400 300 120° 1/1
98AL1640 40 LED 3600 4000-4300 400 300 120° 1/1
98AL1650 50 LED 4500 4000-4300 400 300 120° 1/1
98AL14 * 400 300 90° 1/1
98AL16 * 400 300 120° 1/1
Reflector: polycarbonate (PC) | Mounting: hanging mounting
* empty fixture E27
50/60
Hz
SMD
Ra>80 3
64
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
