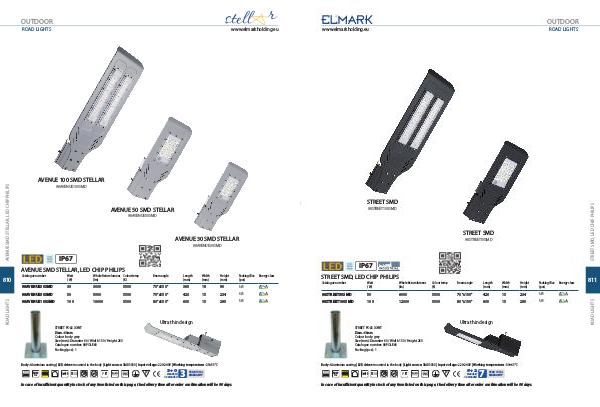

ELMARK Lighting 2019 Lighting_2019 | Page 410

OUTDOOR
ROAD LIGHTS
www.elmarkholding.eu
АVENUE 100 SMD STELLAR
98AVENUE100SMD
АVENUE 50 SMD STELLAR
98AVENUE50SMD
AVENUE 30 SMD STELLAR
98AVENUE30SMD
IP67
АVENUE SMD STELLAR, LED CHIP PHILIPS
810
Catalogue number Watt
(W) Whole fixture lumens Colour temp
(lm)
(K) Beam angle Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
98AVENUE30SMD 30 3000 5500 70°x150° 365 18 90 1/1
98AVENUE50SMD 50 5000 5500 70°x150° 420 15 234 1/1
98AVENUE100SMD 100 10000 5500 80°x150° 605 15 295 1/1
Ultra thin design
STREET POLE JOINT
Diam.: 60mm
Colour body: grey
Size (mm): Diameter 60 / Width 150 / Height 250
Catalogue number: 98POLE60
Packing (pcs): 1
Body: Aluminium casting | LED driver: mounted in the body | Light source: SMD3030 | Input voltage: 220-240V | Working temperature: -25+55°C
50/60
Hz
Ra>80 35
67
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
