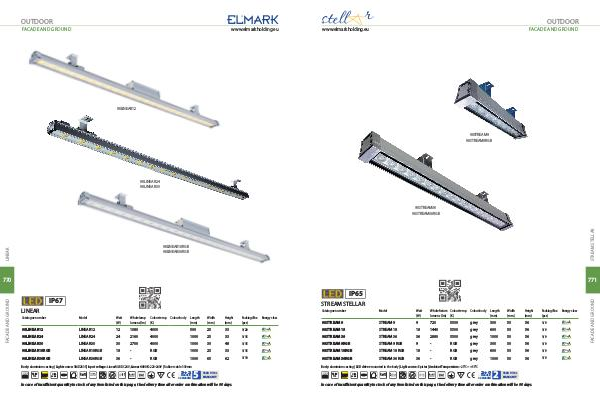

ELMARK Lighting 2019 Lighting_2019 | Page 370

OUTDOOR
FACADE AND GROUND
www.elmarkholding.eu
98LINEAR12
98LINEAR24
98LINEAR30
98LINEAR18RGB
98LINEAR36RGB
770
IP67
LINEAR
Catalogue number Model Watt
(W) Whole lamp
lumens (lm) Colour temp. Colour body
(K) Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
98LINEAR12 LINEAR12 12 1080 4000 500 25 33 1/20
98LINEAR24 LINEAR24 24 2160 4000 1000 25 33 1/15
98LINEAR30 LINEAR30 30 2700 4000 1000 30 48 1/15
98LINEAR18RGB LINEAR18RGB 18 - RGB 1000 25 33 1/15
98LINEAR36RGB LINEAR36RGB 36 - RGB 1000 65 62 1/10
Body: aluminium casting | Light source: SMD2835| Input voltage: LinearRGB DC24V; Linear 4000K: 220-240V | Rubber cable 300mm
50/60
Hz
High
power
Ra>70 25000h
54
67
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
