OUTDOOR
GARDEN
www.elmarkholding.eu
GRF GRF
96GRFLED006 96GRFLED0041
96GRFLED0031
GRF
96GRFLED005
GRF GRF
96GRFLED010 96GRFLED0061
96GRFLED0091
IP65

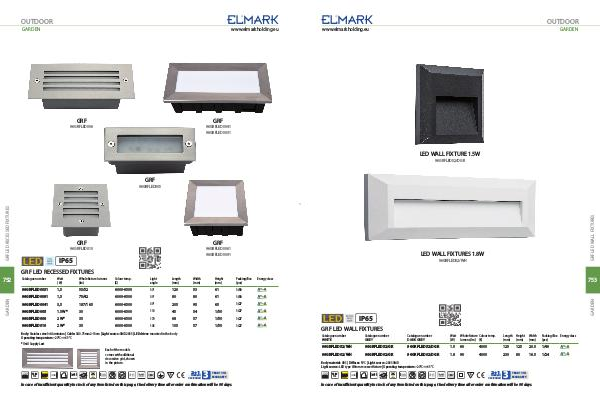

GRF LED RECESSED FIXTURES
752
Catalogue number Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Light
angle Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
96GRFLED0031 1,5 55/32 6000-6500 30° 120 53 61 1/50
96GRFLED0091 1,5 75/42 6000-6500 30° 80 80 61 1/50
96GRFLED0041 3,5 187/165 6000-6500 30° 205 95 65 1/27
96GRFLED005 1.5W* 30 6000-6500 110 45 54 1/50 1/27
96GRFLED006 2W* 35 6000-6500 170 68 57 1/50 1/27
96GRFLED010 2W* 35 6000-6500 105 105 57 1/50 1/27
Body: Stainless steel +Aluminium | Cable: 3G0.75mm2-10cm | Light source: SMD2835 | LED driver: mounted in the body
Operating temperature: -20°C÷+65°C
*Until Supply Last
Each of the models
comes with additional
decorative grid, shown
in the picture.
50/60
Hz
Ra>80
>15000
3
2+1
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
