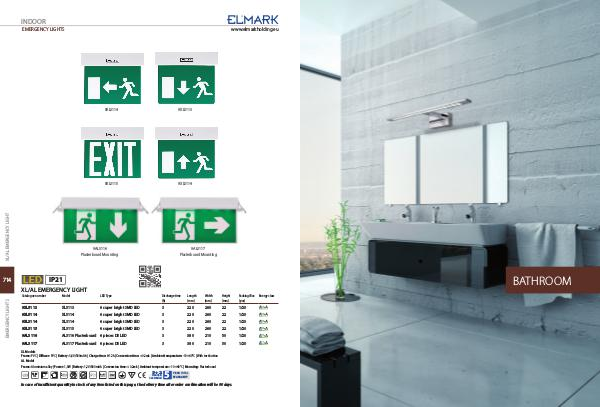

ELMARK Lighting 2019 Lighting_2019 | Page 314

INDOOR
EMERGENCY LIGHTS
www.elmarkholding.eu
9XL3114 9XL5113
9XL3115 9XL5114
9AL3116
Plasterboard Mounting
9AL3117
Plasterboard Mounting
IP21
714
XL/AL EMERGENCY LIGHT
Catalogue number Model LED Type Discharge time
(h) Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9XL5113 XL5113 6 super bright SMD LED 3 220 260 22 1/20
9XL5114 XL5114 6 super bright SMD LED 3 220 260 22 1/20
9XL3114 XL3114 6 super bright SMD LED 3 220 260 22 1/20
9XL3115 XL3115 6 super bright SMD LED 3 220 260 22 1/20
9AL3116 AL3116 Plasterboard 6 pieces D5 LED 3 380 210 50 1/20
9AL3117 AL3117 Plasterboard 6 pieces D5 LED 3 380 210 50 1/20
XL Models
Frame: PVC | Diffuser: PVC | Battery: 3,6V/300mAh | Charge time: 8-12h | Conversion time: <0.2sek | Ambient temperature: -10+40°C | With test button
AL Model
Frame: Aluminium alloy | Power: 1,5W | Battery: 1,2V/800mAh | Conversion time: <0.2sek | Ambient temperature: -10+40°C | Mounting: Plasterboard
50/60
Hz
2
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
