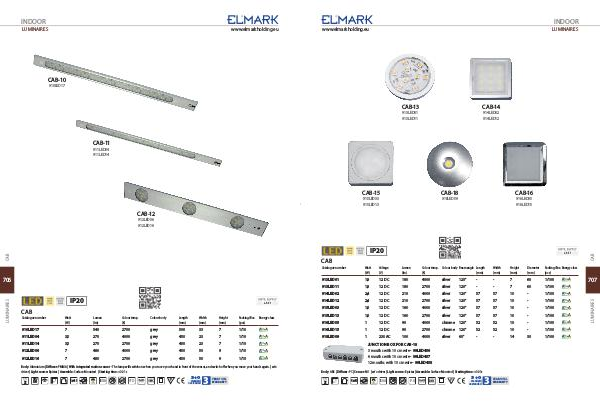

ELMARK Lighting 2019 Lighting_2019 | Page 307

INDOOR
LUMINAIRES
CAB-13 CAB-14
913LED01
913LED11 914LED02
914LED12
CAB-15 CAB-18 CAB-16
915LED03
915LED13 918LED09 916LED05
916LED15
IP20
CAB
Catalogue number Watt
(W) Voltage
(V) Lumen
(lm) Colour temp. Colour body Beam angle Length
(K)
(mm) Width
(mm) Height
(mm) Diameter
(mm) Packing/Box Energy class
(pcs)
913LED01 1,8 12 DC 180 4000 silver 120° - - 7 60 1/100
913LED11 1,8 12 DC 180 2700 silver 120° - - 7 60 1/100
914LED02 2,4 12 DC 210 4000 silver 120° 57 57 10 - 1/100
914LED12 2,4 12 DC 210 2700 silver 120° 57 57 10 - 1/100
915LED03 1,8 12 DC 160 4000 silver 120° 57 57 10 - 1/100
915LED13 1,8 12 DC 160 2700 silver 120° 57 57 10 - 1/100
916LED05 1 12 DC 90 4000 chrome 120° 52 52 10 - 1/100
916LED15 1 12 DC 90 2700 chrome 120° 52 52 10 - 1/100
918LED09 1 230 AC 100 4000 silver 60° - - 14 30 1/100
JUNCTION BOX FOR CAB-18
3 mouths with 10 cm wire - 99LED456
6 mouths with 10 cm wire - 99LED457
12 mouths with 10 cm wire - 99LED458
Body: ABS | Diffuser: PC | Sensor: NO | w/o driver | Light source: Epistar | Assemble: Surface Mounted | Starting time: <0.01s
DC
Ra>80
>10000
3
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
707
