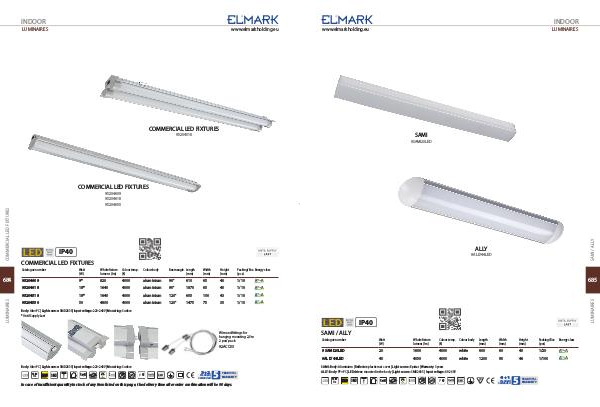

ELMARK Lighting 2019 Lighting_2019 | Page 285

INDOOR
www.elmarkholding.eu
LUMINAIRES
SAMI
9SAMI20LED
ALLY
9ALLY44LED
685
IP40
SAMI / ALLY
Catalogue number Watt
(W) Whole fixture
lumens (lm) Colour temp. Colour body
(K) Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9SAMI20LED 20 1600 4000 white 600 60 40 1/20
9ALLY44LED 45 4050 4000 white 1200 95 46 1/100
SAMI: Body: Aluminium | Reflector: plastic mat cover | Light source: Epistar | Warranty: 3 years
ALLY: Body: PP+PC | LED driver: mounted in the body | Light source: SMD2835 | Input voltage: 85-265V
50/60
Hz
SMD
Ra>80
>20000
3
40
4+1
standard
+extended
5
YEAR TOTAL
WARRANTY
Energy class
