INDOOR
LUMINAIRES
IP44

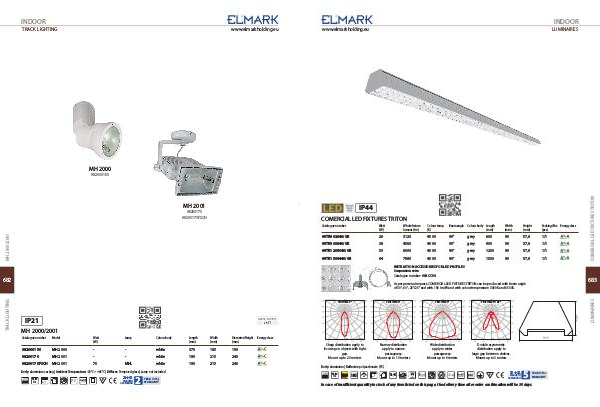

COMERCIAL LED FIXTURES TRITON
Catalogue number Watt
(W) Whole fixture
lumens (lm) Colour temp.
(K) Beam angle Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box Energy class
(pcs)
99TR602640/GR 26 3120 4000 90° grey 600 90 57,6 1/1
99TR903840/GR 38 4560 4000 90° grey 900 90 57,6 1/1
99TR1205040/GR 50 6000 4000 90° grey 1200 90 57,6 1/1
99TR1506440/GR 64 7680 4000 90° grey 1500 90 57,6 1/1
INSTALATION ACCESSORIES FOR LED PROFILES
Suspension wire
Catalogue number: 99ACC54
683
As per personal request, COMERCIAL LED FIXTURES TRITON can be produced with beam angle
of 30°, 60° , 25°/25° and with 156 lm/W and with colour temperature 3000K and 6500K.
TRITON 30° TRITON 60° TRITON 90° TRITON 25°/ 25°
Sharp distribution apply to
focusing on objects with tight
gap.
Mount up to 20 meters Narrow distribution
apply to narrow
passageway.
Mount up to 10 meters Wide distribution
apply to wider
passageway.
Mount up to 6 meters Double asymmetric
distribution apply to
large gap between shelves.
Mount up to 3 meters
Body: aluminium | Reflector: polycarbonate (PC)
50/60
Hz
SMD
90°
Ra>80
>15000
5
www.elmarkholding.eu
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 30 days.
