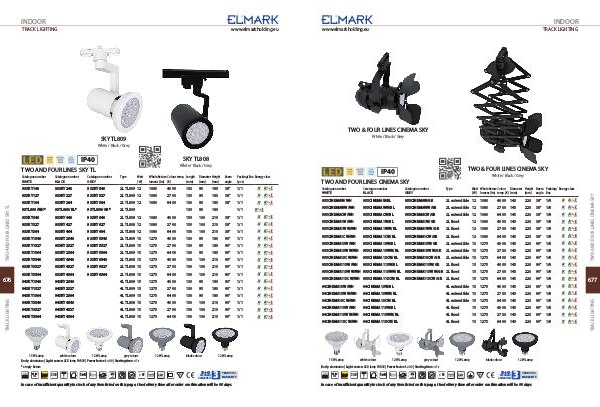

ELMARK Lighting 2019 Lighting_2019 | Page 277

INDOOR
www.elmarkholding.eu
TRACK LIGHTING
TWO & FOUR LINES CINEMA SKY
White / Black / Grey
TWO & FOUR LINES CINEMA SKY
IP40
White / Black / Grey
Catalogue number
BLACK Catalogue number
GREY Type
Watt Whole fixture Colour Diameter Height Beam Packing/ Energy class
(W) lumens (lm) temp. (K) (mm)
(mm) angle Box
955CINEMAW/WH 955CINEMAW/BL 955CINEMAW/GR 2L extendible 12 1080 4000 145 220 38° 1/6
955CINEMAWW/WH 955CINEMAWW/BL 955CINEMAWW/GR 2L extendible 12 1080 2700 145 220 38° 1/6
955CINEMACW/WH 955CINEMACW/BL 955CINEMACW/GR 2L extendible 12 1080 6400 145 220 38° 1/6
955CINEMA1W/WH 955CINEMA1W/BL 955CINEMA1W/GR 2L fixed 12 1080 4000 145 220 38° 1/6
955CINEMA1WW/WH 955CINEMA1WW/BL 955CINEMA1WW/GR 2L fixed 12 1080 2700 145 220 38° 1/6
955CINEMA1CW/WH 955CINEMA1CW/BL 955CINEMA1CW/GR 2L fixed 12 1080 6400 145 220 38° 1/6
955CINEMA15W/WH 955CINEMA15W/BL 955CINEMA15W/GR 2L extendible 15 1275 4000 145 220 90° 1/6
955CINEMA15WW/WH 955CINEMA15WW/BL 955CINEMA15WW/GR 2L extendible 15 1275 2700 145 220 90° 1/6
955CINEMA15CW/WH 955CINEMA15CW/BL 955CINEMA15CW/GR 2L extendible 15 1275 6400 145 220 90° 1/6
955CINEMA115W/WH 955CINEMA115W/BL 955CINEMA115W/GR 2L fixed 15 1275 4000 145 220 90° 1/6
955CINEMA115WW/WH 955CINEMA115WW/BL 955CINEMA115WW/GR 2L fixed 15 1275 2700 145 220 90° 1/6
955CINEMA115CW/WH 955CINEMA115CW/BL
955CINEMA115CW/GR
15 1275 6400 145 220 90° 1/6
94CINEMA15W/WH 94CINEMA15W/BL 4L extendible 15 1275 4000 145 220 90° 1/6
94CINEMA15WW/WH 94CINEMA15WW/BL 4L extendible 15 1275 2700 145 220 90° 1/6
94CINEMA15CW/WH 94CINEMA15CW/BL 4L extendible 15 1275 6400 145 220 90° 1/6
94CINEMA115W/WH 94CINEMA115W/BL 4L fixed 15 1275 4000 145 220 90° 1/6
94CINEMA115WW/WH 94CINEMA115WW/BL 4L fixed 15 1275 2700 145 220 90° 1/6
94CINEMA115CW/WH 94CINEMA115CW/BL 4L fixed 15 1275 6400 145 220 90° 1/6
15 W Lamp
white colour
12 W Lamp
grey colour
2L fixed
12 W Lamp
black colour
12 W Lamp
Body: aluminium | Light source: LED lamp PAR30 | Power factor: λ>0.9 | Starting time: <1s
50/60
Hz
COB
Ra>80 3
>20000
40
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
677
Catalogue number
WHITE
TWO AND FOUR LINES CINEMA SKY
