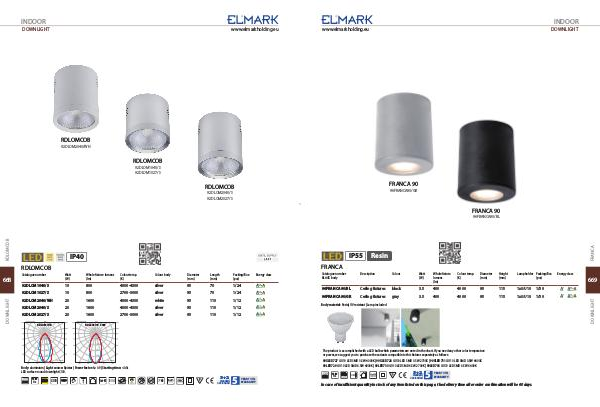

ELMARK Lighting 2019 Lighting_2019 | Page 268

INDOOR
DOWNLIGHT
www.elmarkholding.eu
RDLOMCOB
92DLOM2040/WH
RDLOMCOB
92DLOM1040/S
92DLOM1027/S
RDLOMCOB
92DLOM2040/S
92DLOM2027/S
IP40
RDLOMCOB
668
Catalogue number Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Diameter
(mm) Length
(mm) Packing/Box
(pcs)
92DLOM1040/S 10 800 4000-4300 silver 95 70 1/24
92DLOM1027/S 10 800 2700-3000 silver 95 70 1/24
92DLOM2040/WH 20 1600 4000-4300 white 95 110 1/12
92DLOM2040/S 20 1600 4000-4300 silver 95 110 1/12
92DLOM2027/S 20 1600 2700-3000 silver 95 110 1/12
RDLOMCOB
RDL60COB 30W
Body: aluminium | Light source: Epistar | Power factor: λ>0.9 | Starting time: <0.5s
LED surface round downlight COB.
50/60
Hz
COB
60°
Ra>80 3
>20000
40
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
Energy class
