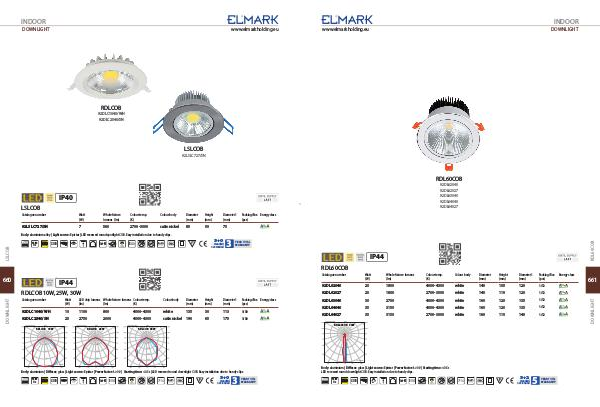

ELMARK Lighting 2019 Lighting_2019 | Page 261

INDOOR
www.elmarkholding.eu
DOWNLIGHT
RDL60COB
92DL62040
92DL62027
92DL63040
92DL64040
92DL64027
IP44
RDL60COB
Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Diameter
(mm) Height
(mm) Diameter 1
(mm) Packing/Box
(pcs)
92DL62040 20 1800 4000-4300 white 140 105 120 1/12
92DL62027 20 1800 2700-3000 white 140 110 120 1/12
92DL63040 30 2700 4000-4300 white 160 120 135 1/12
92DL64040 35 3150 4000-4300 white 160 120 135 1/12
92DL64027 35 3150 2700-3000 white 160 110 140 1/12
RDL60COB 30W
Body: aluminium | Diffuser: glass | Light source: Epistar | Power factor: λ>0.9 | Starting time: <0.5s
LED recessed round downlight COB. Easy installation due to handy clips.
50/60
Hz
COB
60°
Ra>80 3
3+2
>20000
standard
+extended
5
YEAR TOTAL
WARRANTY
Energy class
661
Catalogue number
