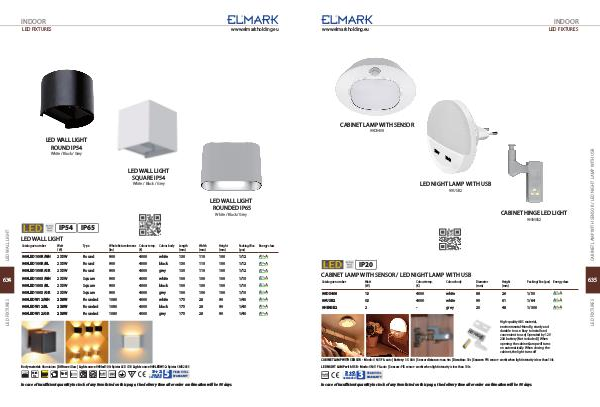

ELMARK Lighting 2019 Lighting_2019 | Seite 234

INDOOR
LED FIXTURES
www.elmarkholding.eu
LED WALL LIGHT
ROUND IP54
White / Black / Grey
LED WALL LIGHT
SQUARE IP54
White / Black / Grey
LED WALL LIGHT
ROUNDED IP65
White / Black / Grey
634
IP54
IP65
LED WALL LIGHT
Catalogue number Watt
(W) Type Whole fixture lumens Colour temp. Colour body
(lm)
(K) Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
969LED100R/WH 2X5W Round 900 4000 white 130 110 100 1/12
969LED100R/BL 2X5W Round 900 4000 black 130 110 100 1/12
969LED100R/GR 2X5W Round 900 4000 grey 130 110 100 1/12
969LED100S/WH 2X5W Square 900 4000 white 100 100 100 1/10
969LED100S/BL 2X5W Square 900 4000 black 100 100 100 1/10
969LED100S/GR 2X5W Square 900 4000 grey 100 100 100 1/10
969LEDW12/WH 2X6W Rounded 1080 4000 white 175 28 90 1/40
969LEDW12/BL 2X6W Rounded 1080 4000 black 175 28 90 1/40
969LEDW12/GR 2X6W Rounded 1080 4000 grey 175 28 90 1/40
Body material: Aluminium | Diffuser: Glass | Light source 969led100: Epistar LED COB Light source 969LEDW12: Epistar SMD2835
50/60
Hz
Ra>80 3
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
