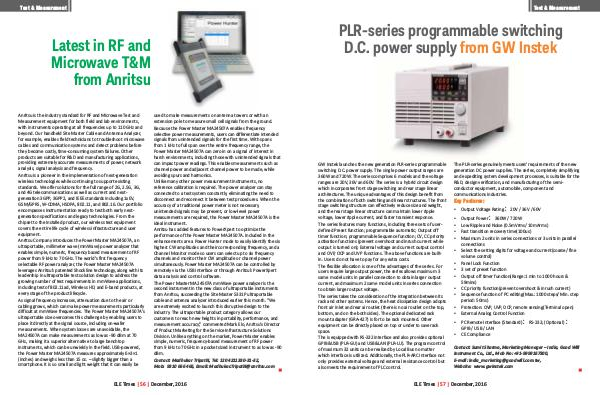

Test & Measurement PLR-series programmable switching D.C. power supply from GW Instek GW Instek launches the new generation PLR-series programmable switching D.C. power supply. The single power output ranges are 360W and 720W. The series comprises 6 models and the voltage ranges are 20V, 36V and 60V. The series is a hybrid circuit design which incorporates front stage switching and rear stage linear architectures. The unique advantages of this design benefit from the combination of both switching and linear structures. The front stage switching structure can effectively reduce size and weight, and the rear stage linear structure can maintain lower ripple voltage, lower ripple current, and faster transient response. The series features many functions, including three sets of userdefined Preset function; programmable automatic; Output off timer function; programmable Sequence function; CV, CC priority activation functions (prevent overshoot and inrush current while output is turned on); External voltage and current output control and OVP, OCP and UVP functions. The above functions are builtin. Users do not have to pay for any extra costs. The flexible allocation is one of the advantages of the series. For users require large output power, the series allows maximum 3 same model units in parallel connection to obtain larger output current, and maximum 2 same model units in series connection to obtain larger output voltage. The series takes the consideration of the integration between its rack and other systems. Hence, the heat dissipation design adopts front air inlet and rear air outlet (there is no air outlet on the top, bottom, and on the both sides). The optional dedicated rack mount adapter (GRA-427) is for to be rack mounted. Other equipment can be directly placed on top or under to save rack space. The is equipped with RS-232 interface and also provides optional GPIB&USB (PLR-GU) and USB&LAN (PLR-LU). The program control of maximum 32 units can be realized by Local Bus no matter which interface is utilized. Additionally, the PLR-ARC interface not only provides external voltage and external resistance control but also meets the requirement of PLC control. The PLR-series genuinely meets users' requirements of the new generation DC power supplies. The series, completely simplifying and expediting system development processes, is suitable for the R&D, design verification, and manufacturing of the semiconductor equipment, automobile, component and communications industries. Key Features: Ÿ Output Voltage Rating：20V / 36V / 60V Ÿ Output Power：360W / 720W Ÿ Low Ripple and Noise (0.5mVrms/ 10mArms) Ÿ Fast transition recovery time(100us) Ÿ Maximum 2 units in series connections or 3 units in parallel connections Ÿ Select the setting digits for voltage and current(coarse/ fine volume control) Ÿ Panel Lock Function Ÿ 3 set of preset function Ÿ Output off timer function(Range:1 min to 1000 hours & 59mins) Ÿ CC priority function(prevent overshoot & inrush current) Ÿ Sequence function of PC editing(Max.: 1000 steps/ Min. step period: 50ms) Ÿ Protection: OVP, UVP, OCP, remote sensing(Terminal open) Ÿ External Analog Control Function Ÿ PC Remote Interface (Standard)：RS-232; (Optional) ： GPIB / USB / LAN Ÿ CE Compliance Contact: Sumit Sharma, Marketing Manager – India, Good Will Instrument Co., Ltd., Mob No: [phone], E-mail: [email protected], Website: www.gwinstek.com ELE Times | 57 | December, 2016
