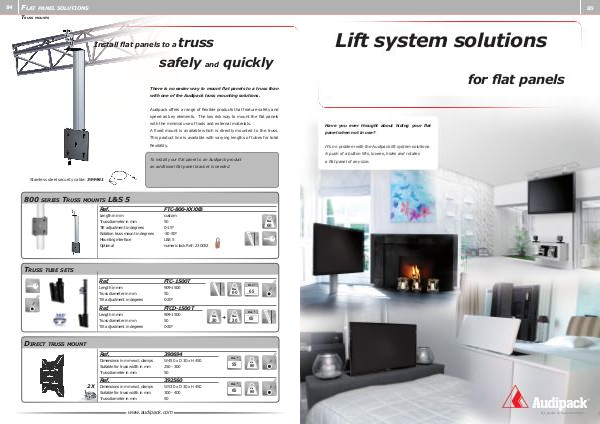

F lat panel solutions
T russ mounts
Install flat panels to a
truss
safely and quickly
There is no easier way to mount flat panels to a truss than
with one of the Audipack truss mounting solutions.
Audipack offers a range of flexible products that feature safety and
speed as key elements. The low risk way to mount the flat panels
with the minimal use of tools and external materials.
A fixed mount is available which is directly mounted to the truss.
This product line is available with varying lengths of tubes for total
flexibility.
To install your flat panel to an Audipack product
an additional flat panel bracket is needed.
Stainless steel security cable: 399941
800 series T russ mounts L&S 5
Ref. FTC-800-XXXXB
Length in mm custom
Truss diameter in mm 50
Tilt adjustment in degrees 0-15°
Rotation truss mount in degrees -30-30°
Mounting interface L&S 5
Optional numeric lock Ref.: 230052
Ref. FTC-1500T
Length in mm 909-1500
Truss diameter in mm 50
Tilt adjustment in degrees 0-20°
Ref. FTCD-1500T
Length in mm 909-1500
Truss diameter in mm 50
Tilt adjustment in degrees 0-20°
Ref. 390694
Dimensions in mm excl. clamps W 450 x D 30 x H 450
Suitable for truss width in mm 250 - 300
Truss diameter in mm 50
Ref. 392560
Dimensions in mm excl. clamps W 530 x D 30 x H 450
Suitable for truss width in mm 300 - 400
Truss diameter in mm 50
Max.
60
T russ tube sets
Max. “
Max.
60
65
Max. “
Max.
30
+
Max.
30
65
D irect truss mount
2 X
www.audipack.com
