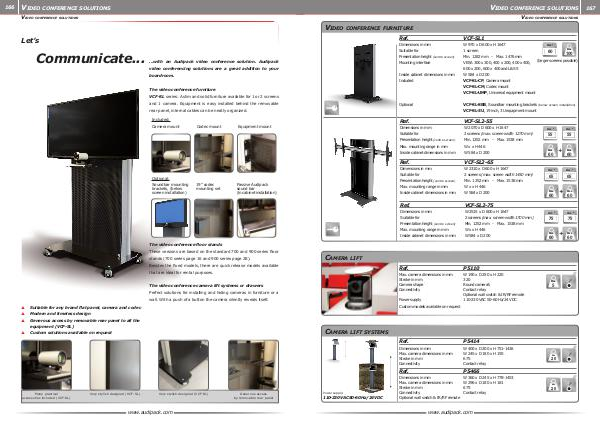

V ideo conference solutions
V ideo conference solutions
V ideo conference furniture
Ref. VCF-SL1
Dimensions in mm W 970 x D 600 x H 1647
Suitable for 1 screen
Presentation height (centre screen) Min. 1282 mm - Max. 1476 mm
Mounting interface VESA 300 x 300, 400 x 200, 400 x 400,
600 x 200, 600 x 400 and L&S 5
Max. “
Max.
60
100
(larger screens possible)
Inside cabinet dimensions in mm W 584 x D 200
Included VCF-SL-CP, Camera mount
VCF-SL-CM, Codec mount
VCF-SL-UMP, Universal equipment mount
Optional VCF-SL-SBB, Soundbar mounting brackets (below screen installation)
VCF-SL-3U, 19 inch, 3U equipment mount
Ref. VCF-SL2-55
Dimensions in mm W 2070 x D 600 x H 1647
Suitable for 2 screens (max. screen width 1270 mm)
Presentation height (centre screen) Min. 1252 mm - Max. 1538 mm
Max. mounting range in mm W x x H 446
Inside cabinet dimensions in mm W 584 x D 200
Max. “ Max. “
55 55
Max.
60
+
Max.
60
Ref. VCF-SL2-65
Dimensions in mm W 2310 x D 600 x H 1647
Suitable for 2 screens (max. screen width 1450 mm)
Presentation height (centre screen) Min. 1252 mm - Max. 1538 mm
Max. mounting range in mm W x x H 446
Inside cabinet dimensions in mm W 584 x D 200
Max. “ Max. “
65 65
Max.
60
+
Max.
60
Ref. VCF-SL2-75
Dimensions in mm W 2515 x D 600 x H 1647
Suitable for 2 screens (max. screen width 1700 mm)
Presentation height (centre screen) Min. 1252 mm - Max. 1538 mm
Max. mounting range in mm W x x H 446
Inside cabinet dimensions in mm W 584 x D 200
Max. “ Max. “
75 75
Max.
60
C amera lift
Ref. P5110
Max. camera dimensions in mm
Stroke in mm
Camera shape
Connectivity
Power supply
W 190 x D 250 x H 220
320
Round camera’s
Contact relay
Optional wall switch & IR/RF remote
110-230 VAC 50-60 Hz/24 VDC
Max.
5
Custom models available on request
C amera lift systems
Ref. P5414
Dimensions in mm
Max. camera dimensions in mm
Stroke in mm
Connectivity
W 400 x D 200 x H 751-1426
W 245 x D 180 x H 155
675
Contact relay
Max.
20
Ref. P5466
Power supply:
110-230 VAC 50-60 Hz/24 VDC
Dimensions in mm
Max. camera dimensions in mm
Stroke in mm
Connectivity
Optional wall switch & IR/RF remote
W 360 x D 245 x H 778-1453
W 296 x D 180 x H 181
675
Contact relay
www.audipack.com
Max.
20
+
Max.
60
