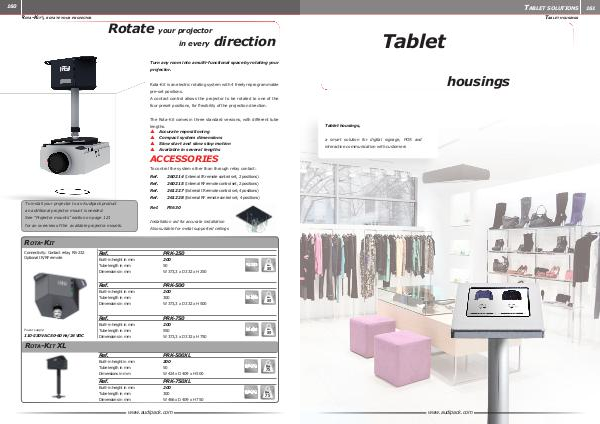

P rojector solutions
R ota -K it ® , rotate your projector
Rotate your projector
in every
direction
Turn any room into a multi-functional space by rotating your
projector.
Rota-Kit is an electric rotating system with 4 freely reprogrammable
pre-set positions.
A contact control allows the projector to be rotated to one of the
four preset positions, for flexibility of the projection direction.
The Rota-Kit comes in three standard versions, with different tube
lengths.
Accurate repositioning
Compact system dimensions
Slow start and slow stop motion
Available in several lengths
ACCESSORIES
To control the system other than through relay contact:
Ref. 260214 (Internal IR remote control set, 2 positions)
Ref. 260215 (Internal RF remote control set, 2 positions)
Ref. 261227 (External IR remote control set, 4 positions)
Ref. 261228 (External RF remote control set, 4 positions)
To install your projector to an Audipack product
Ref. P3630
an additional projector mount is needed.
See “Projector mounts” section on page 121
Installation aid for accurate installation
for an overview of the available projector mounts.
Also suitable for metal supported ceilings
R ota -K it
Connectivity: Contact relay, RS-232
Optional IR/RF remote
Ref. PRK-250
Built-in height in mm 200
Tube length in mm 50
Dimensions in mm W 373,3 x D 332 x H 250
RS-232
Max.
30
Ref. PRK-500
Built-in height in mm 200
Tube length in mm 300
Dimensions in mm W 373,3 x D 332 x H 500
RS-232
Max.
30
Ref. PRK-750
Built-in height in mm 200
Power supply: Tube length in mm 550
110-230 VAC 50-60 Hz/24 VDC Dimensions in mm W 373,3 x D 332 x H 750
RS-232
Max.
30
R ota -K it XL
Ref. PRK-500XL
Built-in height in mm 200
Tube length in mm 50
Dimensions in mm W 424 x D 409 x H 500
RS-232 Max.
RS-232 Max.
75
Ref. PRK-750XL
Built-in height in mm 200
Tube length in mm 300
Dimensions in mm W 466 x D 409 x H 750
www.audipack.com
75
