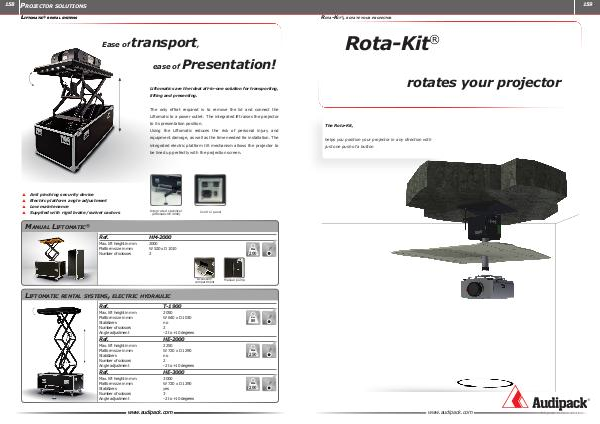

Projector
Projector solutions solutions
Liftomatic ® rental systems
Ease of transport,
ease of Presentation!
Liftomatics are the ideal all-in-one solution for transporting, lifting and presenting.
The only effort required is to remove the lid and connect the Liftomatic to a power outlet. The integrated lift raises the projector to its presentation position. Using the Liftomatic reduces the risk of personal injury and equipment damage, as well as the time needed for installation. The integrated electric platform tilt mechanism allows the projector to be lined up perfectly with the projection screen.
� Anti pinching security device � Electric platform angle adjustment � Low maintenance � Supplied with rigid brake / swivel castors
Integrated stabilizer( Liftomatic HE-3000)
Control panel
Manual Liftomatic ®
Ref. HM-2000
Max. lift height in mm |
2000 |
|
|
Platform size in mm
Number of scissors
|
W 520 x D 1010
2
|
Max.
200
|
Accessory compartment
Manual pump
Liftomatic rental systems, electric hydraulic
Ref. T-1900
Max. lift height in mm |
2050 |
Platform size in mm |
W 640 x D 1030 |
Stabilizers |
no |
Number of scissors |
2 |
Angle adjustment |
-2 to + 10 degrees |
Ref. HE-2000
Max. lift height in mm |
2250 |
Platform size in mm |
W 720 x D 1290 |
Stabilizers |
no |
Number of scissors |
2 |
Angle adjustment |
-2 to + 10 degrees |
Ref. HE-3000
Max. lift height in mm |
3000 |
Platform size in mm |
W 720 x D 1290 |
Stabilizers |
yes |
Number of scissors |
3 |
Angle adjustment |
-2 to + 10 degrees |
80 Max.
Max.
250
Max.
200 www. audipack. com
