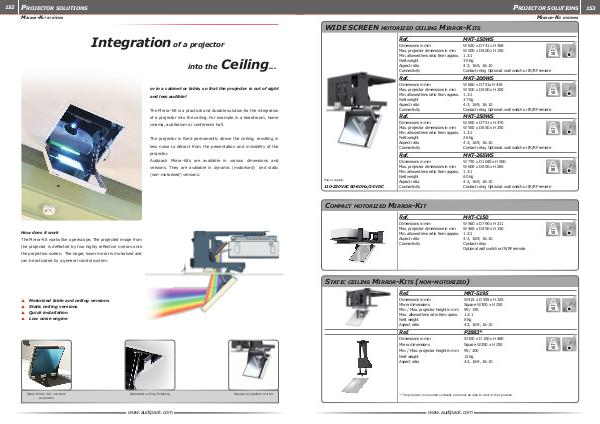

P rojector solutions
M irror -K it systems
WIDE SCREEN motorized ceiling M irror -K its
Ref. MKT-150WS
Dimensions in mm
Max. projector dimensions in mm
Min. allowed lens ratio from approx.
Nett weight
Aspect ratio
Connectivity
W 620 x D 741 x H 368
Max.
W 500 x D 600 x H 150
15
1.3:1
35 Kg
4:3, 16:9, 16:10
Contact relay, Optional: wall switch or IR/RF remote
Ref. MKT-200WS
Dimensions in mm
Max. projector dimensions in mm
Min. allowed lens ratio from approx.
Nett weight
Aspect ratio
Connectivity
W 660 x D 751x H 418
Max.
W 500 x D 600 x H 200
15
1.3:1
37 Kg
4:3, 16:9, 16:10
Contact relay, Optional: wall switch or IR/RF remote
Ref. MKT-250WS
Dimensions in mm
Max. projector dimensions in mm
Min. allowed lens ratio from approx.
Nett weight
Aspect ratio
Connectivity
W 650 x D 751 x H 470
Max.
W 550 x D 650 x H 250
15
1.3:1
26 Kg
4:3, 16:9, 16:10
Contact relay, Optional: wall switch or IR/RF remote
Ref. MKT-265WS
Power supply:
110-230 VAC 50-60 Hz/24 VDC
Dimensions in mm
Max. projector dimensions in mm
Min. allowed lens ratio from approx.
Nett weight
Aspect ratio
Connectivity
W 735 x D 1040 x H 500
Max.
W 600 x D 650 x H 265
35
1.3:1
60 Kg
4:3, 16:9, 16:10
Contact relay, Optional: wall switch or IR/RF remote
C ompact motorized M irror -K it
Ref. MKT-C150
Dimensions in mm
Max. projector dimensions in mm
Min. allowed lens ratio from approx.
Aspect ratio
Connectivity
W 560 x D 790 x H 211
W 465 x D 450 x H 150
1.3:1
4:3, 16:9, 16:10
Contact relay
Optional wall switch or IR/RF remote
Max.
15
S tatic ceiling M irror -K its ( non - motorized )
Ref. MKT-S195
Dimensions in mm
Mirror dimensions
Min. / Max. projector height in mm
Max. allowed lens ratio from aprox.
Nett weight
Aspect ratio
W 415 x D 555 x H 325
Square W 300 x H 250
95 / 195
1.3:1
8 Kg
4:3, 16:9, 16:10
Max.
10
Ref. P2883*
Dimensions in mm W 150 x D 150 x H 480
Mirror dimensions Square W 250 x H 250
Min. / Max. projector height in mm 95 / 200
Nett weight
Aspect ratio 12 Kg
4:3, 16:9, 16:10
* The projector is mounted vertically and must be able to work in that position
www.audipack.com
Max.
10
153
