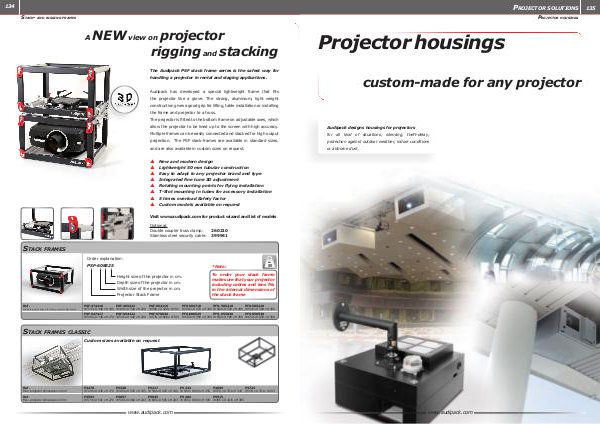

The Audipack PSF stack frame series is the safest way for
handling a projector in rental and staging applications.
Audipack has developed a special lightweight frame that fits
the projector like a glove. The strong, aluminium, light weight
construction gives a good grip for lifting, table installation or installing
the frame and projector to a truss.
The projector is fitted to the bottom frame on adjustable axes, which
allow the projector to be lined up to the screen with high accuracy.
Multiple frames can be easily connected and stacked for high output
projection. The PSF stack-frames are available in standard sizes,
and are also available in custom sizes on request.
New and modern design
Lightweight 50 mm tubular construction
Easy to adapt to any projector brand and type
Integrated fine tune 3D adjustment
Rotating mounting points for flying installation
T-Slot mounting in tubes for accessory installation
5 times overload Safety factor
Custom models available on request
Visit www.audipack.com for product wizard and list of models
Optional:
Double coupler truss clamp:
260210
Stainless steel security cable: 399941
S tack frames
Order explanation:
Max.
PSF-608525
Height size of the projector in cm.
Depth size of the projector in cm.
Width size of the projector in cm.
Projector Stack Frame
Ref.
Including extra space for max projector dimension
30
*Note:
PSF-374418 PSF-465422 PSF-504216
PSF-547417 PSF-554422 PSF-578030
W 370 x D 440 x H 180 W 460 x D 540 x H 220 W 500 x D 420 x H 160
W 540 x D 740 x H 170 W 550 x D 440 x H 220 W 570 x D 800 x H 300
To order your stack frame
make sure that your projector
including cables and lens fits
in the internal dimensions of
the stack frame
PFS-504718 PFS-505218 PFS-505620
PFS-608525 PFS-655830 PFS-658530
W 500 x D 470 x H 180 W 500 x D 520 x H 180 W 500 x D 560 x H 200
W 600 x D 850 x H 250 W 650 x D 580 x H 300 W 650 x D 850 x H 300
S tack frames classic
Custom sizes available on request
Ref.
Max. projector dimensions in mm
Ref.
Max. projector dimensions in mm
P3478 P5348 P5217 P5343 P2895 P3723
W 320 x D 430 x H 170 W 400 x D 525 x H 235 W 500 x D 425 x H 160 W 520 x D 600 x H 255 W 570 x D 783 x H 243 W 570 x D 783 x H 293
P3593 P3657 P5045 P5406 P5515
W 579 x D 641 x H 270 W 580 x D 860 x H 243 W 605 x D 565 x H 293 W 650 x D 860 x H 305 W 385 x D 1015 x H 385
