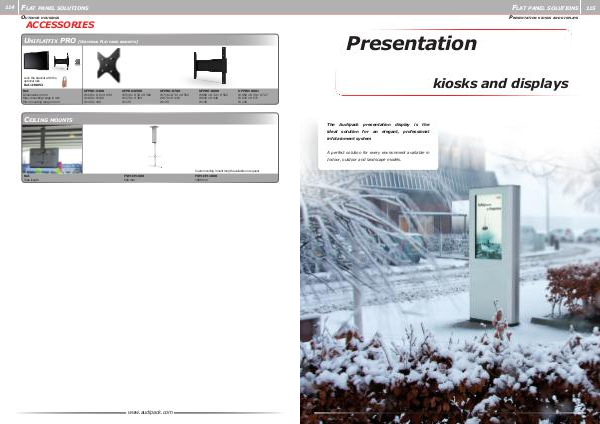

114
F lat panel solutions
O utdoor housings
ACCESSORIES
U niflatfix PRO (U
niversal
F lat panel brackets )
Lock the bracket with the
optional lock
Ref.: 230052
Ref. UFPRO-V400
Dimensions in mm
Max. mounting range in mm
Min. mounting range in mm
W 430 x D 6 x H 430
W 400 x H 400
W 100 x 100
UFPRO-0500 UFPRO-0700 UFPRO-0800 UFPRO-0801
W 516 x D 32 x H 382
W 470 x H 360
W 125
W 716 x D 32 x H 502
W 670 x H 446
W 125
W 860 x D 32 x H 502
W 810 x H 446
W 130
W 860 x D 39 x H 727
W 810 x H 671
W 120
C eiling mounts
Max.
85
Custom ceiling mount length available on request
Ref. FSM-CM-600
Tube length
600 mm
www.audipack.com
FSM-CM-1000
1000 mm
