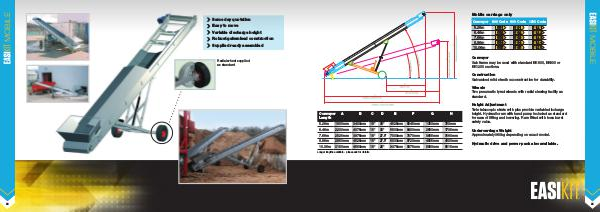

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 23

Mobile carriage only
Conveyor
561
562
563
564
565
591
592
593
594
595
5121
5122
5123
5124
5125
Conveyor
Sub frame may be used with standard EK600, EK900 or
EK1200 sections.
5.26m
6.46m
7.66m
8.86m
10.06m
600 Code 900 Code 1200 Code
Construction
Galvanised mild steel box construction for durability.
Wheels
Two pneumatic tyred wheels with radial slewing facility as
standard.
Conveyor
Length
5.26m
A B C D
1900mm 3400mm 15° 35°
E
F
G H
4525mm 5245mm 1350mm 750mm
6.46m 2200mm 4075mm 15° 35° 5500mm 6400mm 2520mm 1735mm
7.66m 2525mm 3975mm 15° 27.5° 7000mm 7570mm 3655mm 3160mm
8.86m 2850mm 4525mm 15° 27.5° 8030mm 8720mm 4825mm 4200mm
10.06m 3150mm 4550mm 15° 25° 5980mm 5515mm
9375mm 9875mm
Height Adjustment
Twin telescopic struts with pins provide variable discharge
height. Hydraulic ram with hand pump included as standard
for ease of lifting and lowering. Ram fitted with hose burst
safety valve.
Undercarriage Weight
Approximately 360kg depending on exact model.
Hydraulic drive and power pack also available.
Longer lengths available - please ask for details
23
