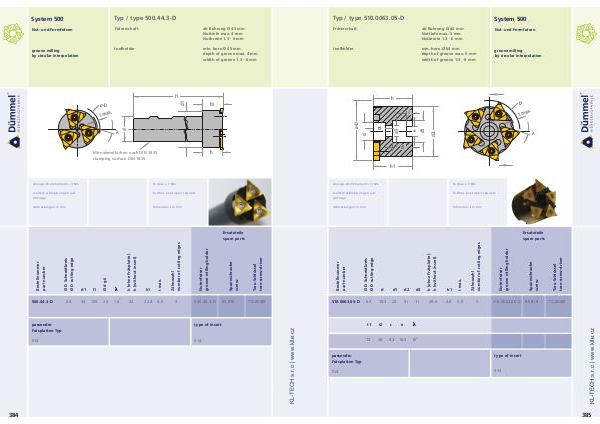

Typ / type 510.0063.05-D
System 500
Fräserschaft ab Bohrung Ø 64 mm
Nuttiefe max. 5 mm
Nutbreite 1.3 - 6 mm Nut- und Formfräsen
toolholder min. bore Ø 64 mm
depth of groove max. 5 mm
width of groove 1.3 - 6 mm groove milling
by circular interpolation
h
D
ax.
λ
d2
t m
t1
c
t2
h1
torque = 3 Nm
weitere Abmessungen auf
Anfrage further sizes upon request
Abmessungen in mm dimensions in mm
Anzugs-Drehmoment = 3 Nm
t1 t2
12
20
5.0 5
22 51 11
c e λ
6.3 10.3 10 °
510.0063.05-D
passender
Fräsplatten Typ type of insert
514 514
85.818
torx-screw-driver
40 d3
45°
TX-20/80
39.6 d2 18.5
d1 63
510.0063.05-D
h1 d
Ersatzteile
spare parts
385
