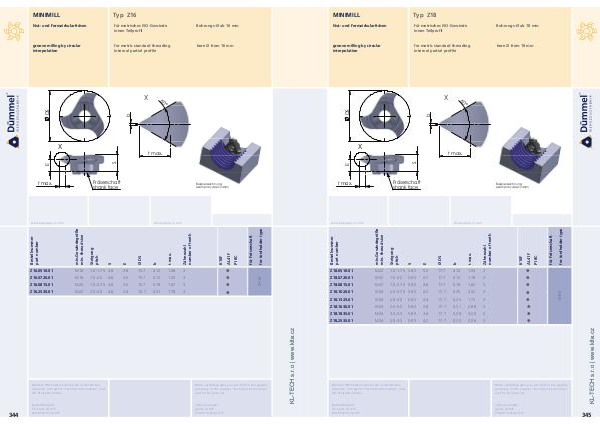

MINIMILL Typ Z18 Nut- und Formzirkularfräsen für metrisches ISO-Gewinde
innen Teilprofil Bohrungs-Ø ab 18 mm
groove milling by circular
interpolation for metric standard threading
internal partial profile bore Ø from 18 mm
X
X
t max.
Fräserschaft
shank face
t max.
Beispielzeichnung
exemplary application
3
0.12 1.19 3
Z18.0815.01 M22 1.5-2.75 5.85 4.6 17.7 0.19 1.62 3
Z18.1020.01 M24 2.0-3.75 5.85 4.2 17.7 0.25 2.22 3
Z18.1325.01 M24 2.0-3.0 5.85 4.4 17.7 0.25 1.73 3
Z18.1630.01 M24 2.5-5.0 5.85 3.8 17.7 0.31 2.98 3
Z18.1835.01 M24 3.0-5.5 5.85 3.6 17.7 0.38 3.25 3
Z18.2535.01 M24 2.0-3.5 5.85 4.2 17.7 0.25 2.06 3
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel "Technische Hinweise" und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter "technical instructions"
and in the price list.
Bestellbeispiel:
für Sorte AL41F:
Z18.0510.01/AL41F order-example:
grade AL41F:
Z18.0510.01/AL41F
1.03 17.7
for
0.12 4.7 17.7 5.85
Fräserschaft
5.0 1.0-2.0 1.0-1.75 5.85 M22 M22 Z18.0720.01 Z18.0510.01
dimensions in mm
Abmessungen in mm
345
