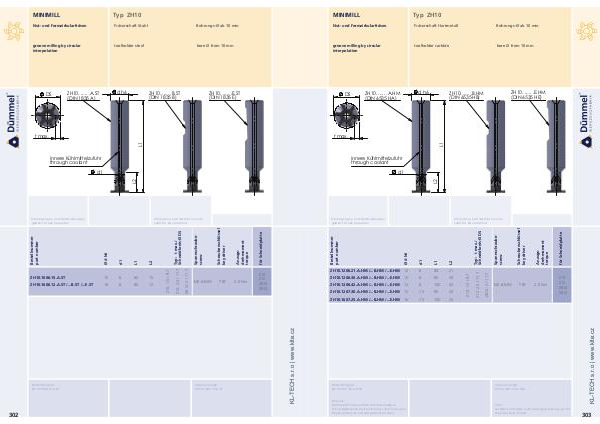

MINIMILL Typ ZH10 Nut- und Formzirkularfräsen Fräserschaft Hartmetall Bohrungs-Ø ab 10 mm
groove milling by circular
interpolation toolholder carbide bore Ø from 10 mm
d h6
ZH10. ..... .A.HM
(DIN 6535 HA)
DS
ZH10. ..... .E.HM
(DIN 6535 HE)
ZH10. ..... .B.HM
(DIN 6535 HB)
L1
t max.
innere Kühlmittelzufuhr
through coolant
d1
42
90 30
ZH10.1607.25.A.HM /...B.HM /...E.HM 16 7.3 100 25
M2.6-MM
T 8F
2.0 Nm
Z10
Z12
Z610
Z612
Bestellbeispiel:
ZH10.1607.25.A.HM order-example:
ZH10.1607.25.A.HM
Hinweis:
Hartmetall-Fräserschäfte mit beschädigter
Schneidplattenaufnahme können durch unseren
Reparaturservice instand gesetzt werden. note:
carbide-toolholder with damaged seating can be
repaired by Dümmel.
100 7.3
für
6 ZH10.1207.30.A.HM /...B.HM /...E.HM 12
drehmoment
ZH10.1206.42.A.HM /...B.HM /...E.HM 12 30
21
90 80 6 6 ZH10.1206.30.A.HM /...B.HM /...E.HM 12 ZH10.1206.21.A.HM /...B.HM /...E.HM 12
dimensions and describtions are
valid for all variations
Abmessungen und Beschreibungen
gelten für alle Varianten
303
