ROtaline

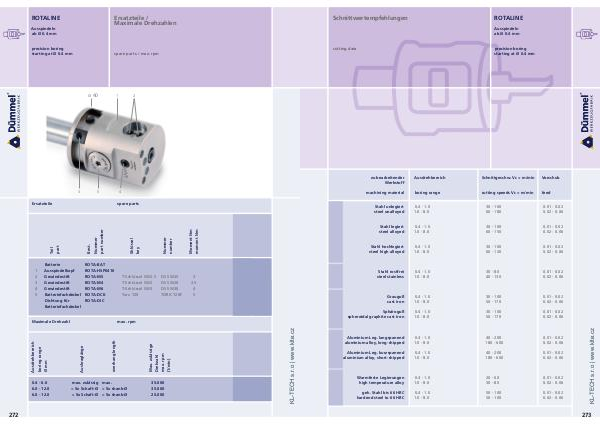

Schnittwertempfehlungen
Ausspindeln
ab Ø 0.4 mm
zu bearbeitender
Werkstoff
machining material
Ausdrehbereich Schnittgeschw. Vc = m/min Vorschub
boring range cutting speeds Vc = m/min feed
Stahl unlegiert
steel unalloyed 0.4 - 1.0
1.0 - 8.0 30 - 100
60 - 180 0.01 - 0.02
0.02 - 0.06
Stahl legiert
steel alloyed 0.4 - 1.0
1.0 - 8.0 30 - 100
60 - 150 0.01 - 0.02
0.02 - 0.06
Stahl hochlegiert
steel high alloyed 0.4 - 1.0
1.0 - 8.0 30 - 100
60 - 120 0.01 - 0.02
0.02 - 0.06
Stahl rostfrei
steel stainless 0.4 - 1.0
1.0 - 8.0 30 - 80
40 - 130 0.01 - 0.02
0.02 - 0.06
Grauguß
cast iron 0.4 - 1.0
1.0 - 8.0 30 - 100
50 - 170 0.01 - 0.02
0.02 - 0.06
Sphäroguß
spheroidal graphite cast iron 0.4 - 1.0
1.0 - 8.0 30 - 100
50 - 170 0.01 - 0.02
0.02 - 0.06
Aluminium Leg. langspanend
aluminium alloy, long-chipped 0.4 - 1.0
1.0 - 8.0 40 - 200
180 - 600 0.01 - 0.02
0.02 - 0.06
Aluminium Leg. kurzspanend
aluminium alloy, short-chipped 0.4 - 1.0
1.0 - 8.0 40 - 200
180 - 600 0.01 - 0.02
0.02 - 0.06
Warmfeste Legierungen
high temperature alloy 0.4 - 1.0
1.0 - 8.0 20 - 60
30 - 80 0.01 - 0.02
0.02 - 0.06
geh. Stahl bis 66 HRC
hardend steel to 66 HRC 0.4 - 1.0
1.0 - 8.0 50 - 100
50 - 100 0.01 - 0.02
0.02 - 0.06
precision boring
starting at Ø 0.4 mm
cutting data
273
