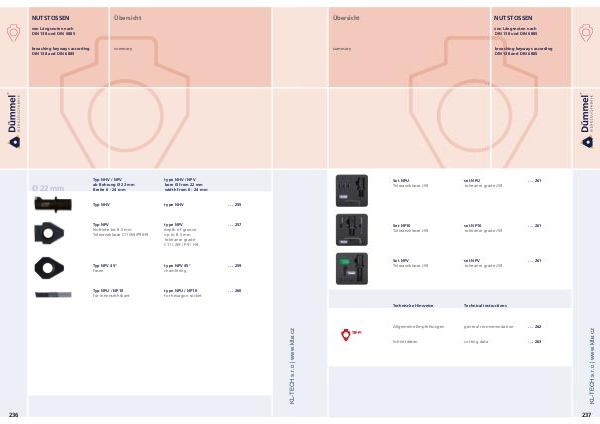

NUTSTOSSEN
Übersicht
von Längsnuten nach
DIN 138 und DIN 6885
broaching keyways according
DIN 138 and DIN 6885
summary
L
r
Ø 22 L mm
Typ NHV / NPV
ab Bohrung Ø 22 mm
Breite 6 - 24 mm type NHV / NPV
bore Ø from 22 mm
width from 6 - 24 mm Typ NHV type NHV . . . 255
type NPV
depth of groove
up to 8.5 mm
tolerance grade
C11 / JS9 / P9 / H9 . . . 257
Typ NPV 45°
Fasen type NPV 45°
chamfering . . . 259
Typ NPU / NP10
für Innensechskant type NPU / NP10
for hexagon socket . . . 260
5°
r
t max.
r
f
r
Typ NPV
Nuttiefe bis 8.5 mm
Toleranzklasse C11/JS9/P9/H9
236
