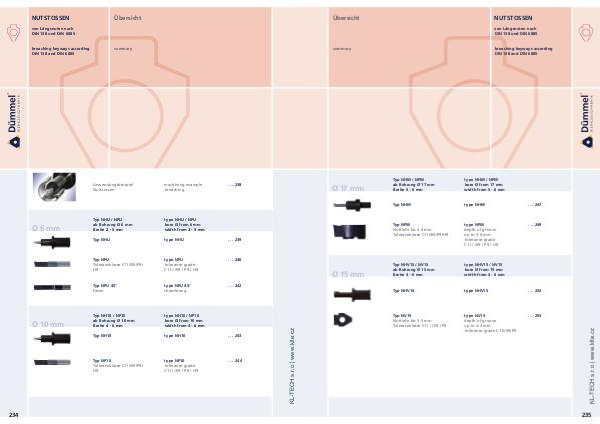

NUTSTOSSEN
Übersicht
von Längsnuten nach
DIN 138 und DIN 6885
broaching keyways according
DIN 138 and DIN 6885
Ø 6 mm
summary
Anwendungsbeispiel
Nutstossen machining example
broaching
. . . 238
Typ NHU / NPU
ab Bohrung Ø 6 mm
Breite 2 - 5 mm type NHU / NPU
bore Ø from 6 mm
width from 2 - 5 mm Typ NHU type NHU . . . 239
Typ NPU
Toleranzklasse C11/JS9/P9/
H9 type NPU
tolerance grade
C11 / JS9 / P9 / H9 . . . 240
Typ NPU 45°
Fasen
L type NPU 45°
chamfering . . . 242
L2
type NH10
Typ NP10
Toleranzklasse C11/JS9/P9/
H9 type NP10
tolerance grade
C11 / JS9 / P9 / H9
Typ NH10
. . . 243
L
type NH10 / NP10
bore Ø from 10 mm
width from 4 - 6 mm
234
. . . 244
Typ NH10 / NP10
ab Bohrung Ø 10 mm
Breite 4 - 6 mm
Ø 10 mm
L1
2
