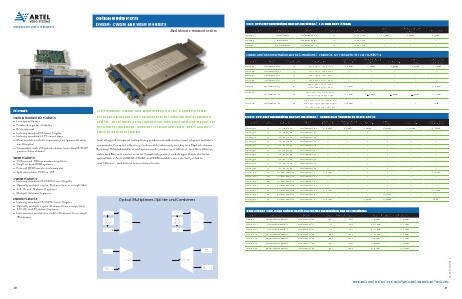

Simplifying Video Transport
FEATURES
Optical multiplexer features
• Low optical losses
• Passive design for reliability
• Bi-directional
• Industry standard ITU wavelengths
• Industry standard LC/PC connectors
• Most modules include expansion port (passes all other
wavelengths)
• Compatible with all DigiLink chassis (including DL4000P
passive 4 slot chassis)
WDM features
• 1310nm and 1550nm combiner/splitters
• Single or dual WDM options
• External WDM conserves chassis slot
• Split ratios from 50/50 to 1/99
Optical Multiplexers
DWDM, CWDM and WDM Modules
DigiLink Video Transport System
Artel’s DWDM, CWDM, and WDM modules create a comprehensive
set of optical multiplexing solutions for the DigiLink video transport
system. These modules, in conjunction with other DigiLink modules or
third party equipment, allow the creation of flexible, space and fiber
efficient optical networks.
Artel designed its optical multiplexing products to address the issue of space and fiber
constraints. For space efficiency, each module takes only one bay in a DigiLink chassis.
By using ITU standard filters and optics, multi-vendor, cost-effective, and fiber efficient
video and Ethernet can be created. Completely passive and designed with the latest
optical filters, Artel’s DWDM, CWDM, and WDM modules are extremely reliable,
cost-effective, and feature low insertion losses.
CWDM features
• Industry standard ITU G.694.2 wavelengths
• Optically multiplex up to 18 channels over a single fiber
• 4, 8, 10, and 18 channel options
• Multiple 4 channel options
DWDM features
• Industry standard ITU G.694.1 wavelengths
• Optically multiplex up to 40 channels on a single fiber
• 4,10, 20, and 40 channel options
• Interconnect modules to enable 40 channels in a single
1RU chassis
Optical Multiplexers, Splitter and Combiners
CH 21
1271nm
4 to 18
Channels
CWDM
5 to 40
Channels
DWDM
CH 60
1611nm
1 - 99 %
1310nm
WDM
1550nm
36
Splitters
99 - 1 %
