Dewalt Spare Part E-Book | Page 9

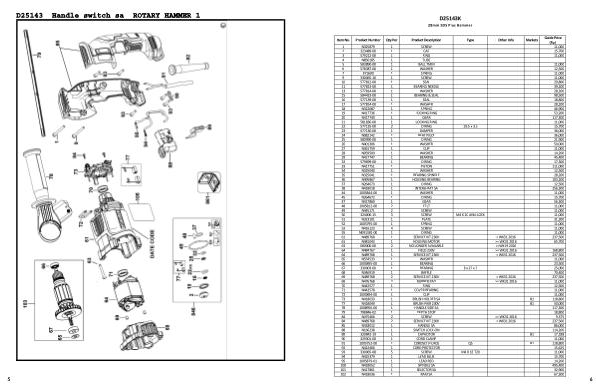

D25143K
28mm SDS Plus Hammer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N325879 1 SCREW 11,000
2 323489-00 1 CAP 15,700
3 579212-00 1 RING 11,000
4 N850185 1 TUBE
5 583890-00 1 BALL 7MM 11,000
6 578387-00 1 WASHER 12,500
7 871690 1 SPRING 11,000
9 330065-16 1 SCREW 11,000
10 577812-00 1 SEAL 29,800
11 577813-00 1 BEARING NEEDLE 39,200
13 577814-00 1 WASHER 28,200
15 584423-00 1 BEARING & SEAL 98,500
16 577139-00 1 SEAL 18,800
17 577814-00 1 WASHER 28,200
18 N322087 1 SPRING 46,900
19 N417736 1 LOCKING RING 53,200
20 N417740 1 GEAR 117,300
21 581836-00 1 LOCKING RING 11,000
22 577135-00 2 O RING 19.5 x 3.5 15,700
23 577130-00 1 DAMPER 36,000
24 N082142 1 BEAT PIECE 36,000
25 580990-00 1 O RING 21,900
26 N401306 1 WASHER 50,000
27 N361759 1 CLIP 11,000
28 N059509 1 WASHER 14,200
29 N417747 1 BEARING 45,400
32 579699-00 1 O RING 17,300
33 N417751 1 PISTON 111,000
34 N325040 1 WASHER 12,500
35 N325041 1 BEARING SPINDLE 28,200
36 N495867 1 HOUSING BEARING 103,200
37 N264673 1 O RING 12,500
38 N418018 1 INTERSHAFT SA 256,300
44 1005844-00 1 WASHER 11,000
45 N264672 1 O RING 15,700
47 N417860 1 GEAR 56,300
48 1005812-00 2 FELT 11,000
49 N445171 2 SCREW 11,000
50 324006-15 3 SCREW M4 X 20 ANU-LOCK 11,000
51 N323101 1 PLATE 31,300
52 1005795-00 1 SPRING 11,000
53 N416123 4 SCREW 11,000
55 N091381-00 1 O RING 11,000
61 N489768 1 SERVICE KIT 230V < WK31 2016 237,500
61 N481043 1 HOUSING MOTOR >= WK31 2016 65,700
63 000000-00 2 NO LONGER AVAILABLE >=WK19 2016
64 N484767 1 FIELD 230V >= WK31 2016 168,800
64 N489768 1 SERVICE KIT 230V < WK31 2016 237,500
65 N554533 1 WASHER 11,000
66 1005895-00 1 BEARING 23,500
67 330003-60 1 BEARING 8 x 22 x 7 25,000
68 N346919 1 BAFFLE 70,400
69 N489768 2 SERVICE KIT 230V < WK31 2016 237,500
69 N476768 2 RUBBER PAD >= WK31 2016 11,000
70 N442577 1 RING 12,500
71 N442578 1 COVER BEARING 11,000
72 1005894-00 1 CLIP 11,000
73 N418033 1 BRUSH HOLDER SA B1 118,800
77 N418049 1 BRUSH PAIR 230V B1 50,000
78 1008956-00 1 HANDLE SIDE SA 117,300
79 798846-02 1 DEPTH STOP 18,800
84 N475466 2 SCREW >= WK31 2016 9,375
84 N489768 2 SERVICE KIT 230V < WK31 2016 237,500
85 N418012 1 HANDLE SA 86,000
88 N166238 1 SWITCH LOCK-ON 114,200
89 320842-19 1 CAPACITOR B1 17,188
90 329301-00 1 CORD CLAMP 11,000
91 1005752-00 1 CORDSET (EURO) QS B1 118,800
92 N422466 1 CORD PROTECTOR 15,625
93 330065-08 5 SCREW M4 X 18 T20 11,000
94 N425379 1 LEAD BLUE 15,700
95 1005879-01 1 LEAD RED 14,200
100 N418052 1 SPINDLE SA 495,400
101 N417861 1 SELECTOR SA 32,900
102 N418036 1 RAM SA 67,300
