Dewalt Spare Part E-Book | Page 88

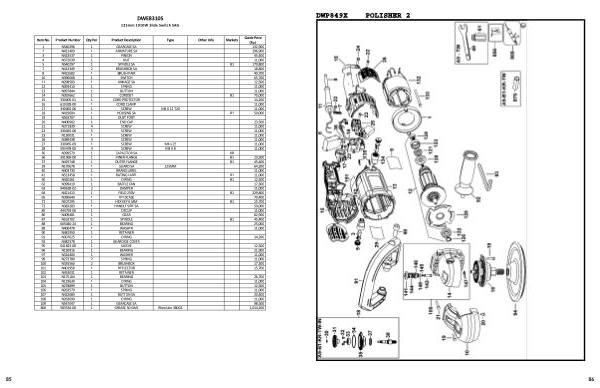

DWE8310S
125mm 1010W Slide Switch SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N540296 1 GEARCASE SA 132,900
2 N421409 1 ARMATURE SA 296,900
3 N423537 1 PINION 45,400
4 N372039 1 NUT 11,000
5 N540297 1 SPINDLE SA B1 179,800
7 N413349 2 BRUSHBOX SA 18,800
8 N422682 1 BRUSH PAIR 40,700
10 N396008 1 SWITCH 65,700
11 N298583 1 LINKAGE SA 12,500
12 N093410 1 SPRING 11,000
13 N097844 1 BUTTON 11,000
14 N392662 1 CORDSET B1 75,000
15 330005-01 1 CORD PROTECTOR 14,200
16 619328-00 1 CORD CLAMP 11,000
17 330065-06 1 SCREW M4 X 12 T20 11,000
18 N419604 1 HOUSING SA B1 50,000
19 N563707 1 DUST PORT
20 N400902 1 END CAP 23,500
21 N371839 4 SCREW 11,000
22 330045-06 5 SCREW 11,000
23 N130031 1 SCREW 11,000
26 N389438 3 SCREW 11,000
27 330065-09 1 SCREW M4 x 25 11,000
28 593478-00 4 SCREW M3 X 8 11,000
30 N399579 1 CAPACITOR SA KR
36 391969-00 1 INNER FLANGE B1 23,500
37 N419748 1 OUTER FLANGE B1 45,400
39 N170678 1 GUARD SA 125MM 64,200
40 N403730 1 BRAND LABEL 11,000
41 N513458 1 RATING LABEL B1 11,000
50 N420261 1 O RING B1 12,500
62 N399419 1 BAFFLE FAN 17,300
63 949638-02 2 DAMPER 11,000
64 N421413 1 FIELD 230V B1 229,800
65 N390640 1 FIELDCASE 70,400
71 N107295 1 HEX KEY 6 MM B1 15,700
72 N383283 1 HANDLE SIDE SA 50,000
85 444793-00 1 CIRCLIP 11,000
86 N409481 1 GEAR 82,900
87 N163702 1 SPINDLE B1 45,400
88 605040-24 1 BEARING 25,000
89 N400478 1 WASHER 11,000
90 N481950 1 RETAINER
91 N307625 1 O RING 14,200
92 N482578 1 GEARCASE COVER
95 641823-00 1 SLEEVE 12,500
96 N130916 1 BEARING 21,900
97 N324400 1 WASHER 11,000
99 N273780 2 SPRING 11,000
100 N335560 2 BRUSHBOX 17,300
101 N401958 1 DEFLECTOR 15,700
102 N453031 1 RETAINER
103 N175104 1 BEARING 26,700
104 N119639 1 O RING 11,000
105 N278899 1 BUTTON 12,500
106 N263579 1 SPRING 11,000
107 N422684 1 BUTTON SA 20,400
108 N263699 1 O RING 11,000
109 N547047 1 GEARCASE SA 98,500
800 583534-00 1 GREASE 50 GMS Rheolube 380G1 1,014,200
85
