Dewalt Spare Part E-Book | Page 83

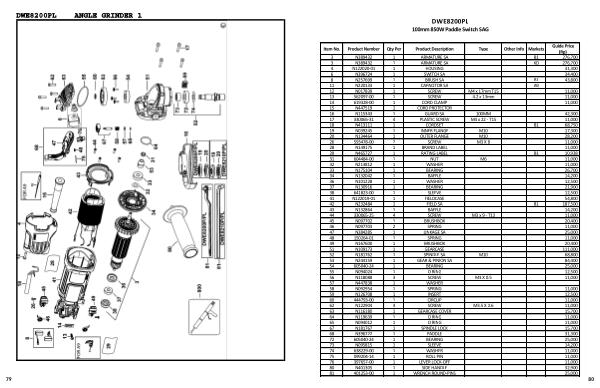

DWE8200PL
100mm 850W Paddle Switch SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
3 N389432 1 ARMATURE SA B1 276,700
3 N389432 1 ARMATURE SA XD 276,700
4 N122020-01 1 HOUSING 31,300
6 N396724 1 SWITCH SA 34,400
8 N257699 1 BRUSH SA B1 43,800
11 N220133 1 CAPACITOR SA A9
12 N017839 1 SCREW M4 x 17mm T15 11,000
13 562097-00 1 SCREW 4.2 x 13mm 11,000
14 619328-00 1 CORD CLAMP 11,000
15 N447519 1 CORD PROTECTOR
16 N115343 1 GUARD SA 100MM 42,300
17 330065-31 4 PLASTIC SCREW M4 x 22 - T15 11,000
18 N413111 1 CORDSET B1 68,750
19 N039245 1 INNER FLANGE M10 17,300
20 N134464 1 OUTER FLANGE M10 28,200
26 593478-00 2 SCREW M3 X 8 11,000
28 N149175 1 BRAND LABEL 11,000
29 N465727 1 RATING LABEL B1 10,938
31 604484-00 1 NUT M6 11,000
32 N213812 1 WASHER 11,000
33 N175104 1 BEARING 26,700
34 N132042 1 BAFFLE 14,200
36 N101228 1 WASHER 12,500
37 N130916 1 BEARING 21,900
38 641823-00 1 SLEEVE 12,500
41 N122019-01 1 FIELDCASE 54,800
42 N232484 1 FIELD SA B1 187,500
43 N132864 1 BAFFLE 14,200
44 330065-25 4 SCREW M3 x 9 - T10 11,000
45 N097702 1 BRUSHBOX 20,400
46 N097703 2 SPRING 11,000
47 N384285 1 LINKAGE SA 25,000
48 150264-01 1 SPRING 11,000
49 N167600 1 BRUSHBOX 20,400
51 N109173 1 GEARCASE 111,000
52 N181762 1 SPINDLE SA M10 68,800
53 N244159 1 GEAR & PINION SA 84,400
54 605040-24 1 BEARING 25,000
55 N094024 1 O RING 12,500
56 N118088 3 SCREW M3 X 0.5 11,000
57 N447838 1 WASHER
58 N092954 1 SPRING 11,000
59 N126708 1 INSERT 12,500
60 444793-00 1 CIRCLIP 11,000
62 N122904 4 SCREW M3.5 X 0.6 11,000
63 N116180 1 GEARCASE COVER 15,700
64 N119639 1 O RING 11,000
65 N094012 1 O RING 11,000
67 N181767 1 SPINDLE LOCK 15,700
68 N396722 1 PADDLE 31,300
72 605040-24 1 BEARING 25,000
73 N095815 1 SLEEVE 14,200
74 638229-00 1 WASHER 11,000
75 099204-14 1 ROLL PIN 11,000
76 397657-00 1 LEVER LOCK-OFF 11,000
80 N401305 1 SIDE HANDLE 32,900
81 401253-00 1 WRENCH ROUND-PINS 25,000
80
