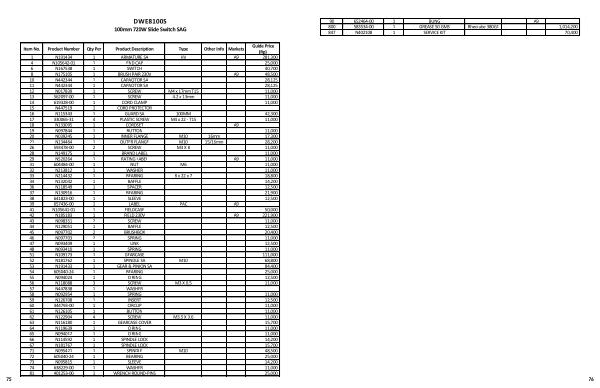

DWE8100S
100mm 720W Slide Switch SAG
75
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N191434 1 ARMATURE SA HV A9 281,300
4 N105642-01 1 END CAP 25,000
6 N167538 1 SWITCH 40,700
8 N175105 1 BRUSH PAIR 230V A9 48,500
10 N442344 1 CAPACITOR SA 28,125
11 N442344 1 CAPACITOR SA 28,125
12 N017839 1 SCREW M4 x 17mm T15 11,000
13 562097-00 1 SCREW 4.2 x 13mm 11,000
14 619328-00 1 CORD CLAMP 11,000
15 N447519 1 CORD PROTECTOR
16 N115343 1 GUARD SA 100MM 42,300
17 330065-31 4 PLASTIC SCREW M4 x 22 - T15 11,000
18 N133095 1 CORDSET A9
19 N097844 1 BUTTON 11,000
20 N039245 1 INNER FLANGE M10 16mm 17,300
21 N134464 1 OUTER FLANGE M10 15/16mm 28,200
26 593478-00 2 SCREW M3 X 8 11,000
28 N149175 1 BRAND LABEL 11,000
29 N520264 1 RATING LABEL A9 11,000
31 604484-00 1 NUT M6 11,000
32 N213812 1 WASHER 11,000
33 N214432 1 BEARING 8 x 22 x 7 18,800
34 N132042 1 BAFFLE 14,200
36 N118549 1 SPACER 12,500
37 N130916 1 BEARING 21,900
38 641823-00 1 SLEEVE 12,500
39 657436-00 1 LABEL PAC A9
41 N105641-01 1 FIELDCASE 50,000
42 N185183 1 FIELD 230V A9 221,900
43 N098351 2 SCREW 11,000
44 N129051 1 BAFFLE 12,500
45 N097702 2 BRUSHBOX 20,400
46 N097703 2 SPRING 11,000
47 N093409 1 LINK 12,500
48 N093410 1 SPRING 11,000
51 N109173 1 GEARCASE 111,000
52 N181762 1 SPINDLE SA M10 68,800
53 N191433 1 GEAR & PINION SA 84,400
54 605040-24 1 BEARING 25,000
55 N094024 1 O RING 12,500
56 N118088 3 SCREW M3 X 0.5 11,000
57 N447838 1 WASHER
58 N092954 1 SPRING 11,000
59 N126708 1 INSERT 12,500
60 444793-00 1 CIRCLIP 11,000
61 N126105 1 BUTTON 11,000
62 N122904 4 SCREW M3.5 X 0.6 11,000
63 N116180 1 GEARCASE COVER 15,700
64 N119639 1 O RING 11,000
65 N094012 1 O RING 11,000
66 N114592 1 SPINDLE LOCK 14,200
67 N181767 1 SPINDLE LOCK 15,700
71 N095421 1 SPINDLE M10 48,500
72 605040-24 1 BEARING 25,000
73 N095815 1 SLEEVE 14,200
74 638229-00 1 WASHER 11,000
81 401253-00 1 WRENCH ROUND-PINS 25,000
