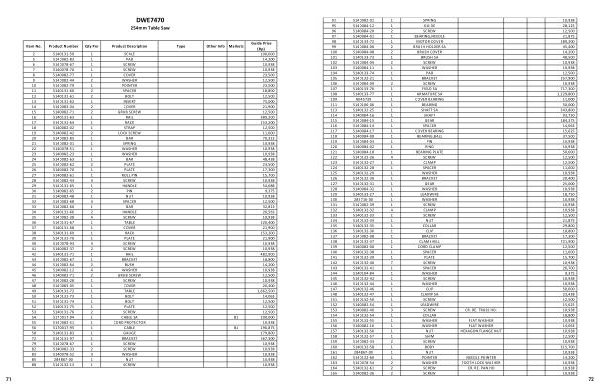

Dewalt Spare Part E-Book | Page 74

DWE7470
254mm Table Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
2 5140131-59 1 SCALE 100,000
5 5140082-83 1 PAD 14,200
6 5140078-67 1 SCREW 10,938
7 5140078-70 1 SCREW 10,938
8 5140082-77 1 COVER 23,500
9 5140082-44 2 WASHER 12,500
10 5140082-79 1 POINTER 23,500
11 5140131-60 2 SPACER 18,800
12 5140131-61 2 BOLT 12,500
13 5140131-62 1 INSERT 75,000
14 5140083-04 2 COVER 21,900
15 5140082-71 2 GRUB SCREW 12,500
16 5140131-63 1 RAIL 389,200
17 5140131-64 1 RACK 153,200
18 5140082-02 1 STRAP 12,500
19 5140082-42 2 LOCK SCREW 11,000
20 5140082-85 1 BAR 70,313
21 5140082-01 1 SPRING 10,938
22 5140078-51 1 WASHER 10,938
23 5140082-23 1 WASHER 10,938
24 5140082-63 1 BAR 48,438
25 5140082-62 2 PLATE 23,500
26 5140082-70 1 PLATE 17,300
27 5140082-61 1 ROLL PIN 15,700
28 5140082-43 4 SCREW 10,938
29 5140131-65 1 HANDLE 54,688
30 5140082-65 2 PIN 9,375
31 5140082-48 1 NUT 10,938
32 5140082-68 4 SPACER 12,500
33 5140082-60 1 BAR 32,813
34 5140131-66 2 HANDLE 26,563
35 5140082-38 4 SCREW 10,938
36 5140131-67 1 TABLE 520,400
37 5140131-68 1 COVER 21,900
38 5140131-69 1 RACK 153,200
39 5140131-70 1 PLATE 21,900
40 5140078-93 4 SCREW 10,938
41 5140082-37 2 SCREW 10,938
42 5140131-71 1 RAIL 482,900
43 5140082-67 1 BRACKET 18,800
44 5140082-64 2 BUSH 14,200
45 5140082-12 4 WASHER 10,938
46 5140082-71 2 GRUB SCREW 12,500
47 5140082-28 1 SCREW 10,938
48 5140083-05 1 COVER 20,400
49 5140131-72 1 TABLE 1,662,500
50 5140131-73 1 BOLT 14,063
51 5140131-74 1 BOLT 12,500
52 5140131-75 1 PLATE 12,500
53 5140131-76 2 SCREW 12,500
54 5170017-94 1 CABLE SA B1 200,000
55 5140082-51 1 CORD PROTECTOR 10,938
56 5170017-95 1 CABLE B1 196,875
58 5140131-83 1 GAUGE 179,800
72 5140131-97 1 BRACKET 567,300
79 5140078-67 1 SCREW 10,938
82 5140082-33 2 SCREW 10,938
83 5140078-52 3 WASHER 10,938
85 284867-00 1 NUT 10,938
88 5140132-13 1 SCREW 10,938
71
