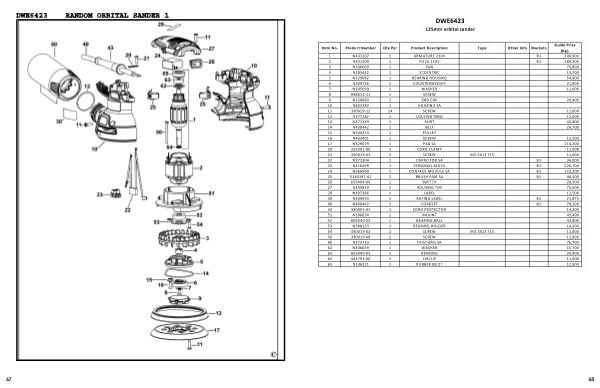

Dewalt Spare Part E-Book | Page 71

DWE6423
125mm orbital sander
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N431207 1 ARMATURE 230V B1 246,900
2 N431209 1 FIELD 230V B1 189,200
3 N396699 1 FAN 79,800
4 N395442 1 ECCENTRIC 15,700
5 N329082 1 BEARING HOUSING 54,800
6 N399756 1 COUNTERWEIGHT 21,900
7 N345099 1 WASHER 11,000
8 098012-11 1 SCREW
9 N329083 1 END CAP 20,400
10 N832383 1 HOUSING SA
11 330019-12 14 SCREW 11,000
12 N377182 1 LOCKING RING 11,000
13 N371139 1 SKIRT 43,800
14 N430442 1 BELT 26,700
15 N544253 1 PULLEY
16 N403401 1 SCREW 12,500
17 N329079 1 PAD SA 114,200
20 329301-00 1 CORD CLAMP 11,000
21 330019-02 2 SCREW M3.5X13 T15 11,000
22 N372304 1 CAPACITOR SA B1 36,000
23 N416499 1 TERMINAL BLOCK B1 226,700
24 N360900 1 CONTROL MODULE SA B1 153,200
25 5140197-61 1 BRUSH PAIR SA B1 48,500
26 656494-00 1 SWITCH 28,200
27 N345859 1 HOUSING TOP 75,000
29 N397366 1 LABEL 12,500
30 N409453 1 RATING LABEL B1 21,875
40 N409402 1 CORDSET B1 78,200
43 330005-01 1 CORD PROTECTOR 14,200
51 N396634 1 MOUNT 45,400
52 605040-25 1 BEARING,BALL 43,800
53 N388153 1 BEARING HOLDER 14,200
54 330019-02 2 SCREW M3.5X13 T15 11,000
56 330019-08 2 SCREW 11,000
60 N273733 1 DUST BAG SA 76,700
62 N336059 1 WASHER 15,700
63 605040-05 1 BEARING 20,400
64 444793-00 1 CIRCLIP 11,000
65 N136311 1 RUBBER BOOT 12,500
68
