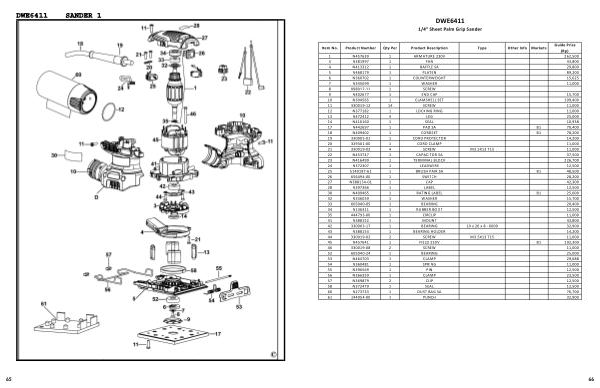

Dewalt Spare Part E-Book | Page 69

DWE6411
1/4” Sheet Palm Grip Sander
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N457639 1 ARMATURE 230V 262,500
3 N381997 1 FAN 43,800
4 N413312 1 BAFFLE SA 29,800
5 N468179 1 PLATEN 89,200
6 N360702 1 COUNTERWEIGHT 15,625
7 N345099 1 WASHER 11,000
8 098012-11 1 SCREW
9 N402677 1 END CAP 15,700
10 N394565 1 CLAMSHELL SET 109,400
11 330019-12 14 SCREW 11,000
12 N377182 1 LOCKING RING 11,000
13 N472412 4 LEG 25,000
14 N416160 1 SEAL 10,938
17 N442697 1 PAD SA B1 70,400
18 N409402 1 CORDSET B1 78,200
19 330005-01 1 CORD PROTECTOR 14,200
20 329301-00 1 CORD CLAMP 11,000
21 330019-02 4 SCREW M3.5X13 T15 11,000
22 N453747 1 CAPACITOR SA 37,500
23 N416499 1 TERMINAL BLOCK 226,700
24 N372307 1 LEADWIRE 12,500
25 5140197-61 1 BRUSH PAIR SA B1 48,500
26 656494-00 1 SWITCH 28,200
27 N388154-01 1 CAP 42,300
28 N397366 1 LABEL 12,500
30 N409465 1 RATING LABEL B1 25,000
32 N336059 1 WASHER 15,700
33 605040-05 1 BEARING 20,400
34 N136311 1 RUBBER BOOT 12,500
35 444793-00 1 CIRCLIP 11,000
41 N388152 1 MOUNT 43,800
42 330003-17 1 BEARING 10 x 26 x 8 - 6000 32,900
43 N388153 1 BEARING HOLDER 14,200
44 330019-02 2 SCREW M3.5X13 T15 11,000
45 N457641 1 FIELD 230V B1 192,300
46 330019-08 2 SCREW 11,000
52 605040-24 1 BEARING 25,000
53 N464703 1 CLAMP 29,688
54 N360481 1 SPRING 11,000
55 N396569 1 PIN 12,500
56 N366359 1 CLAMP 23,500
57 N369879 2 CLIP 12,500
58 N372479 1 SEAL 12,500
60 N273733 1 DUST BAG SA 76,700
61 144954-00 1 PUNCH 32,900
66
