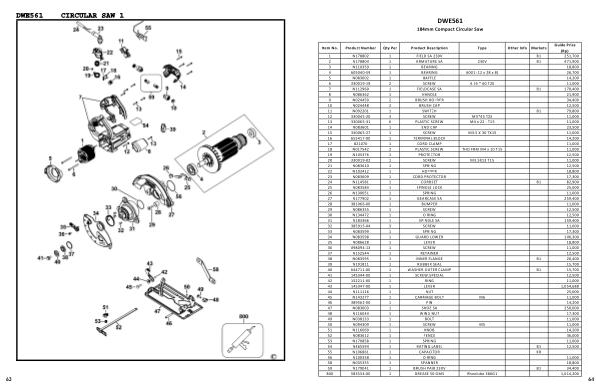

DWE561
184mm Compact Circular Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N178802 1 FIELD SA 230V B1 251,700
2 N178804 1 ARMATURE SA 230V B1 471,900
3 N110359 1 BEARING 18,800
4 605040-59 1 BEARING 6001 (12 x 28 x 8) 26,700
5 N083602 1 BAFFLE 14,200
6 330019-19 2 SCREW 4.55 * 60 T20 11,000
7 N112960 1 FIELDCASE SA B1 170,400
8 N086362 1 HANDLE 21,900
9 N024450 2 BRUSH HOLDER 34,400
10 N024448 2 BRUSH CAP 12,500
11 N092201 1 SWITCH B1 79,800
12 330045-20 3 SCREW M5*45 T25 11,000
13 330065-31 6 PLASTIC SCREW M4 x 22 - T15 11,000
14 N083601 1 END CAP 23,500
15 330065-27 1 SCREW M3.5 X 30 TX15 11,000
16 655417-00 1 TERMINAL BLOCK 14,200
17 821070 1 CORD CLAMP 11,000
18 N017542 2 PLASTIC SCREW THD FRM M4 x 10 T15 11,000
19 N105376 1 PROTECTOR 12,500
20 330019-02 1 SCREW M3.5X13 T15 11,000
21 N083610 1 SPRING 12,500
22 N102412 1 HOLDER 18,800
23 N083609 1 CORD PROTECTOR 17,300
24 N114581 1 CORDSET B1 82,900
25 N083584 1 SPINDLE LOCK 25,000
26 N130051 1 SPRING 11,000
27 N177902 1 GEARCASE SA 259,400
28 381066-00 1 BUMPER 11,000
29 N086355 1 SCREW 12,500
30 N134472 1 O RING 12,500
31 N183366 1 SPINDLE SA 159,400
32 385915-04 3 SCREW 11,000
33 N083599 1 SPRING 17,300
34 N083598 1 GUARD LOWER 106,300
35 N086628 1 LEVER 18,800
36 098094-13 1 SCREW 11,000
37 N152544 1 RETAINER 12,500
38 N083595 1 INNER FLANGE B1 20,400
39 N191811 1 RUBBER SEAL 15,700
40 644711-00 1 WASHER OUTER CLAMP B1 15,700
41 145344-00 1 SCREW.SPECIAL 12,500
42 152211-00 1 RING 11,000
43 145347-00 1 LEVER 1,054,688
44 N111116 1 NUT 25,000
45 N143277 1 CARRIAGE BOLT M6 11,000
46 389562-00 1 PIN 14,200
47 N083603 1 SHOE SA 250,000
48 N116044 1 WING NUT 17,300
49 N038133 1 BOLT 11,000
50 N094309 1 SCREW M5 11,000
51 N116069 1 KNOB 14,200
52 N083612 1 FENCE 36,000
53 N170858 1 SPRING 11,000
54 N465594 1 RATING LABEL B1 12,500
55 N106861 1 CAPACITOR KR
56 N100358 1 O RING 11,000
58 N035355 1 SPANNER 18,800
59 N179041 1 BRUSH PAIR 230V B1 34,400
800 583534-00 1 GREASE 50 GMS Rheolube 380G1 1,014,200
