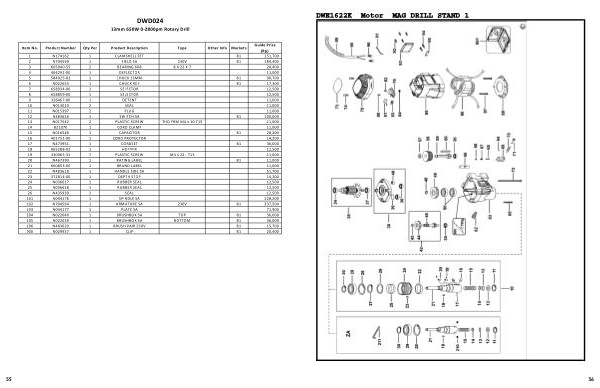

DWD024
13mm 650W 0-2800pm Rotary Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N174162 1 CLAMSHELL SET B1 151,700
2 N704599 1 FIELD SA 230V B1 184,400
3 605040-55 2 BEARING 608 8 X 22 X 7 20,400
4 464292-00 1 DEFLECTOR 11,000
5 584925-02 1 CHUCK 13MM B1 90,700
6 N022653 1 CHUCK KEY B1 17,300
7 658934-00 1 SELECTOR 12,500
8 658859-00 1 SELECTOR 12,500
9 326467-00 1 DETENT 11,000
10 N013010 2 SEAL 11,000
11 N015397 2 PLUG 11,000
12 N483616 1 SWITCH SA B1 100,000
13 N017542 2 PLASTIC SCREW THD FRM M4 x 10 T15 11,000
14 821070 1 CORD CLAMP 11,000
15 N016548 1 CAPACITOR B1 28,200
16 401751-00 1 CORD PROTECTOR 14,200
17 N473951 1 CORDSET B1 36,000
18 065288-02 1 HOLDER 12,500
19 330065-31 7 PLASTIC SCREW M4 x 22 - T15 11,000
20 N467390 1 RATING LABEL B1 11,000
21 660853-00 1 BRAND LABEL 11,000
22 N483618 1 HANDLE SIDE SA 51,700
23 372814-00 1 DEPTH STOP 14,200
24 N036617 1 RUBBER SEAL 12,500
25 N036618 1 RUBBER SEAL 12,500
26 N435939 1 SEAL 12,500
101 N044176 1 SPINDLE SA 128,200
102 N704594 1 ARMATURE SA 230V B1 337,500
103 N044177 1 PLATE SA 71,900
104 N022040 1 BRUSHBOX SA TOP B1 36,000
105 N022039 1 BRUSHBOX SA BOTTOM B1 36,000
106 N483620 1 BRUSH PAIR 230V B1 15,700
900 N029957 1 CLIP B1 20,400
